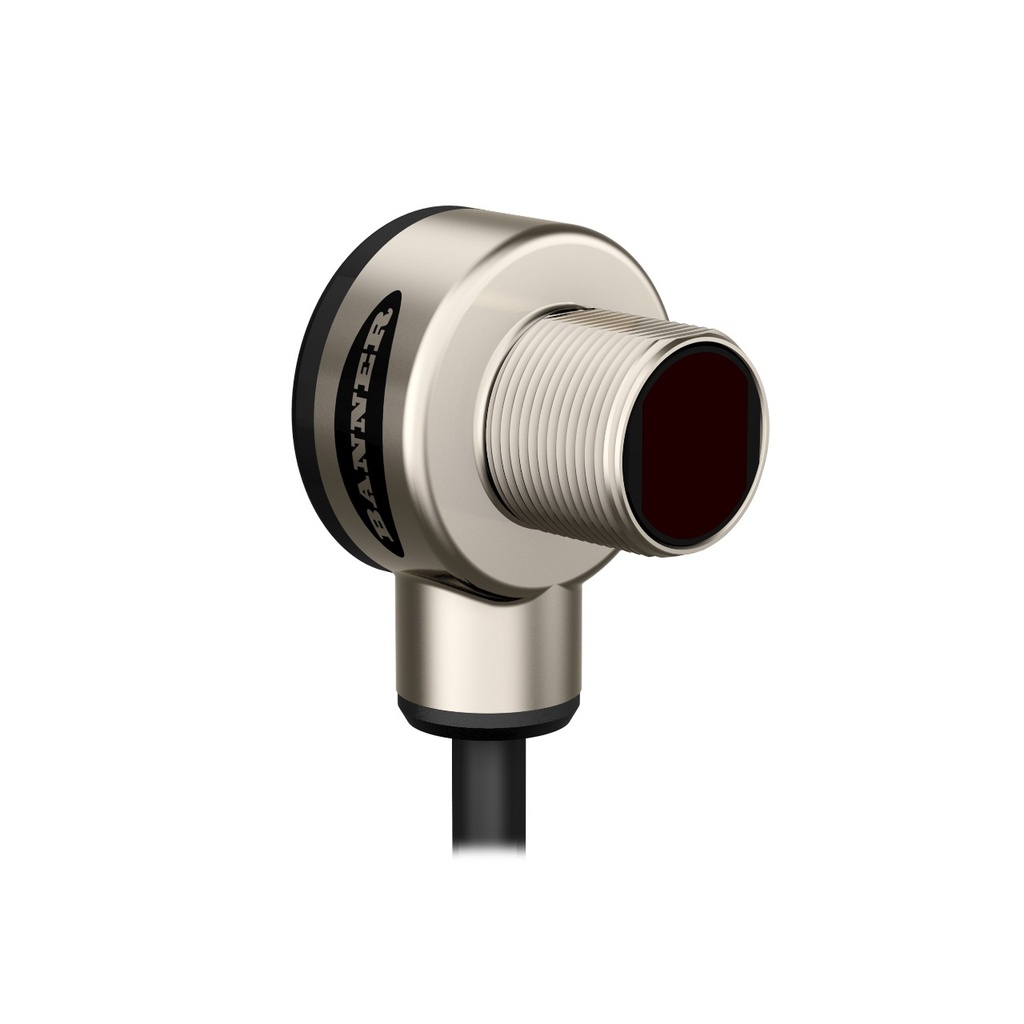

Representative photo. Please check item description for details.

EZ BEAM TM18: Polarized Retroreflective (TM18VP6LP)

https://www.branom.com/web/image/product.template/24007/image_1920?unique=c26756c
(0 review)

Features:

  • EZ BEAM TM18: Polarized Retroreflective
  • Range: 5.5m
  • Input:10-30V dc
  • Outputs: PNP Complementary
  • 2 m (6.5 ft.) Cable
    • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 585
  • Sensing Beam: Visible Red LED
  • Housing Style: Barrel
  • Max Sensing Distance: 5500 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Zinc Die-Cast with Nickel-Plating
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 3 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 131.00 131.0 USD $ 131.00

$ 131.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • EZ BEAM TM18: Polarized Retroreflective
    • Range: 5.5m
    • Input:10-30V dc
    • Outputs: PNP Complementary
    • 2 m (6.5 ft.) Cable
      • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 585
    • Sensing Beam: Visible Red LED
    • Housing Style: Barrel
    • Max Sensing Distance: 5500 mm
    • Sensing Mode (Detailed): Polarized
    • Sensing Mode (General): Retroreflective
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Zinc Die-Cast with Nickel-Plating
    • Feature: Washdown Rated: Yes
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Feature: Audible: No
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 3 ms
    • Operation: Light/Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: Yes
    • Input/Output: Discrete
    • Barrel Diameter: 18 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Cable
    • NEMA / UL: NEMA 6
    • Cord/Cable Length: 2 m
    • Indicator Type: LED
