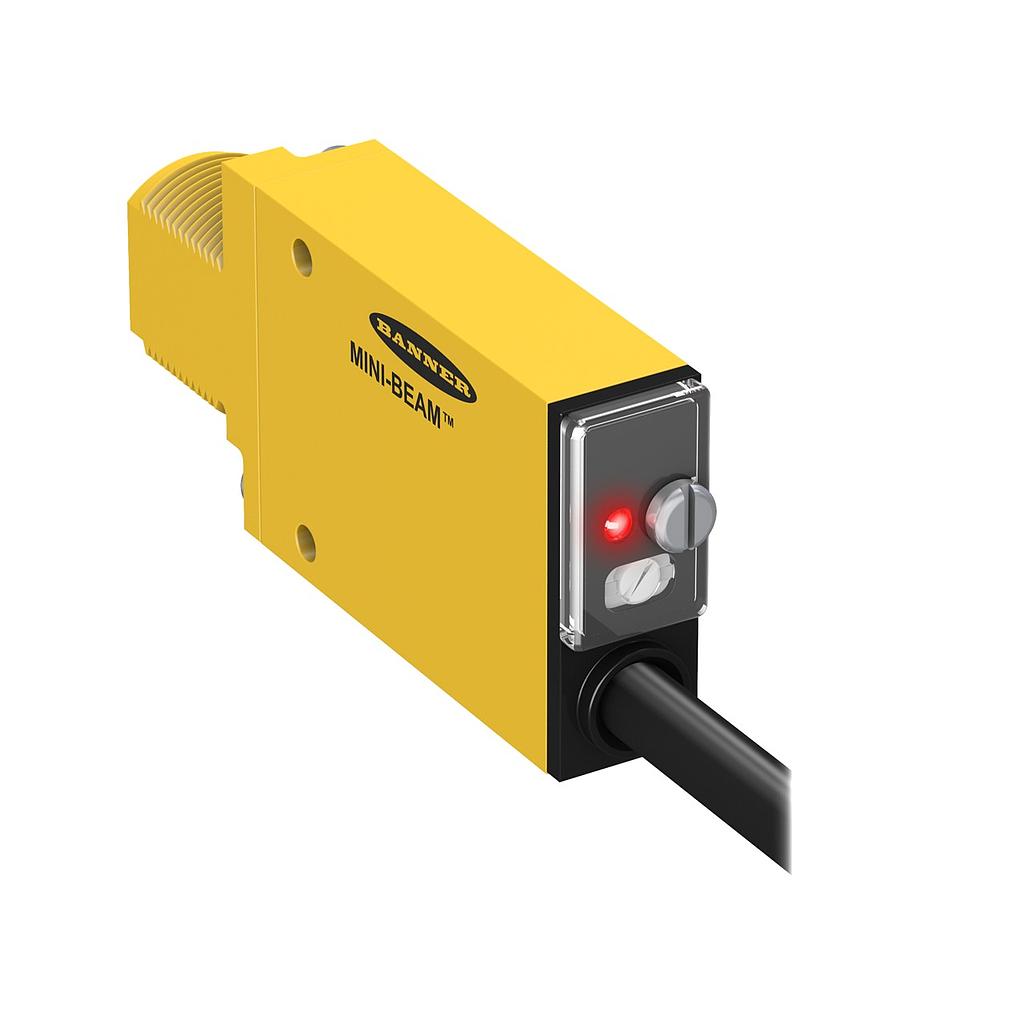

INFRARED 24-240V ac RETROFLECTIVE NON-POLARIZED (SM2A312L)

https://www.branom.com/web/image/product.template/23969/image_1920?unique=c26756c
(0 review)

Features:

  • SM2A312L INFRARED 24-240V ac RETROFLECTIVE NON-POLARIZED
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 1300
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 5000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Audible: No
  • Number of Pins: 2
  • Output Response Time: 4 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 2 m
  • Indicator Type: LED
