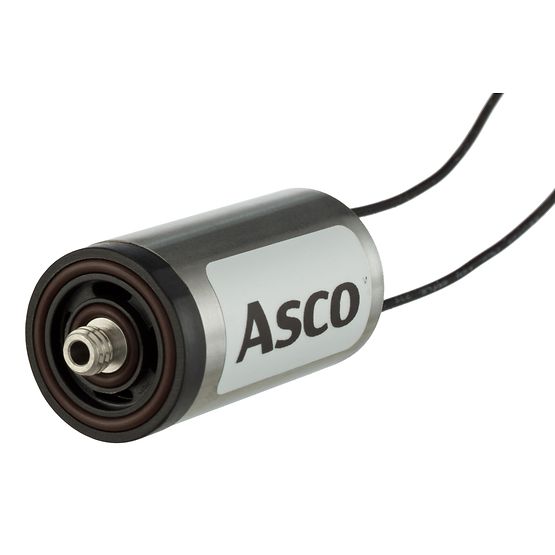

411 Series Miniature Solenoid Valve, Manifold 10-32 UNF Mount
The ASCO Series 411 line of miniature solenoid valves deliver up to twice as many cycles of reliable, repeatable performance versus the competition when used in medical devices, analytical products, and instrumentation. They also offer 12% to 15% lighter weight, plus better performance for the same power — critical in battery-operated portable devices. Designed for use with air and inert gases, the 411 Series valves provide high flow rates, improved maximum operating pressure differential (MOPD), and RoHS compliance. Typical applications include respiratory therapy, patient monitoring, compression therapy (DVT), and robotic pharmacy dispensing.
Features
- Tested to hundreds of millions of cycles
- Corrosion-resistant construction materials offer durability and long life
- Manifold mount permits easy assembly
The ASCO Series 411 line of miniature solenoid valves deliver up to twice as many cycles of reliable, repeatable performance versus the competition when used in medical devices, analytical products, and instrumentation. They also offer 12% to 15% lighter weight, plus better performance for the same power — critical in battery-operated portable devices. Designed for use with air and inert gases, the 411 Series valves provide high flow rates, improved maximum operating pressure differential (MOPD), and RoHS compliance. Typical applications include respiratory therapy, patient monitoring, compression therapy (DVT), and robotic pharmacy dispensing.
Features
- Tested to hundreds of millions of cycles
- Corrosion-resistant construction materials offer durability and long life
- Manifold mount permits easy assembly
Alternative Products
Specifications
| 411 Series Mini Valve | |
|---|---|
| Product Specifications | [M11] 2/2 NC | 19/25" Orifice | 6.9 Cv Flow | -0.9 to 6.9 psi | 0.65 W, [M12] 3/2 NC | 19/25" Orifice | 0.006/6.9 Cv Flow (Port 1 & 3) | -0.9 to 6.9 psi | 0.65 W, [M13] 3/2 Universal | 19/25" Orifice | 0.006/6.9 Cv Flow (Port 1 & 3) | -0.9 to 6.9 psi | 0.65 W, [M21] 2/2 NC | 1-2/5" Orifice | 6.9 Cv Flow | -0.9 to 6.9 psi | 2.0 W, [M22] 3/2 NC | 1-2/5" Orifice | 0.033/6.9 Cv Flow (Port 1 & 3) | -0.9 to 6.9 psi | 2.0 W, [M23] 3/2 Universal | 1-2/5" Orifice | 0.033/3.4 Cv Flow (Port 1 & 3) | -0.9 to 3.4 psi | 2.0 W |
| Voltage | [12] 12 VDC, [24] 24 VDC |
| Options | None, [O] Oxygen Service, [O] Oxygen Service (M21, M23), [P] Label Pressure units in kPa (M21, M23), [P] Label Pressure units in kPa (M11), [S] Stainless Steel Body (M11, M13), [S] Stainless Steel Body (M12) |
| Electrical Connection | [H] Leaded Coil |
| Seal Material | [V] FKM |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Actuation | Solenoid |
| Valve: Body Material | Plastic |
| Valve: Flow Factor (Cv) | 0.013, 0.04, 0.071 |
| Valve: Media | Air-Inert Gas, Oxygen |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 140 |
| Valve: Orifice | 1-2/5in, 19/25in |
| Valve: Min Temperature °F | -10 |
