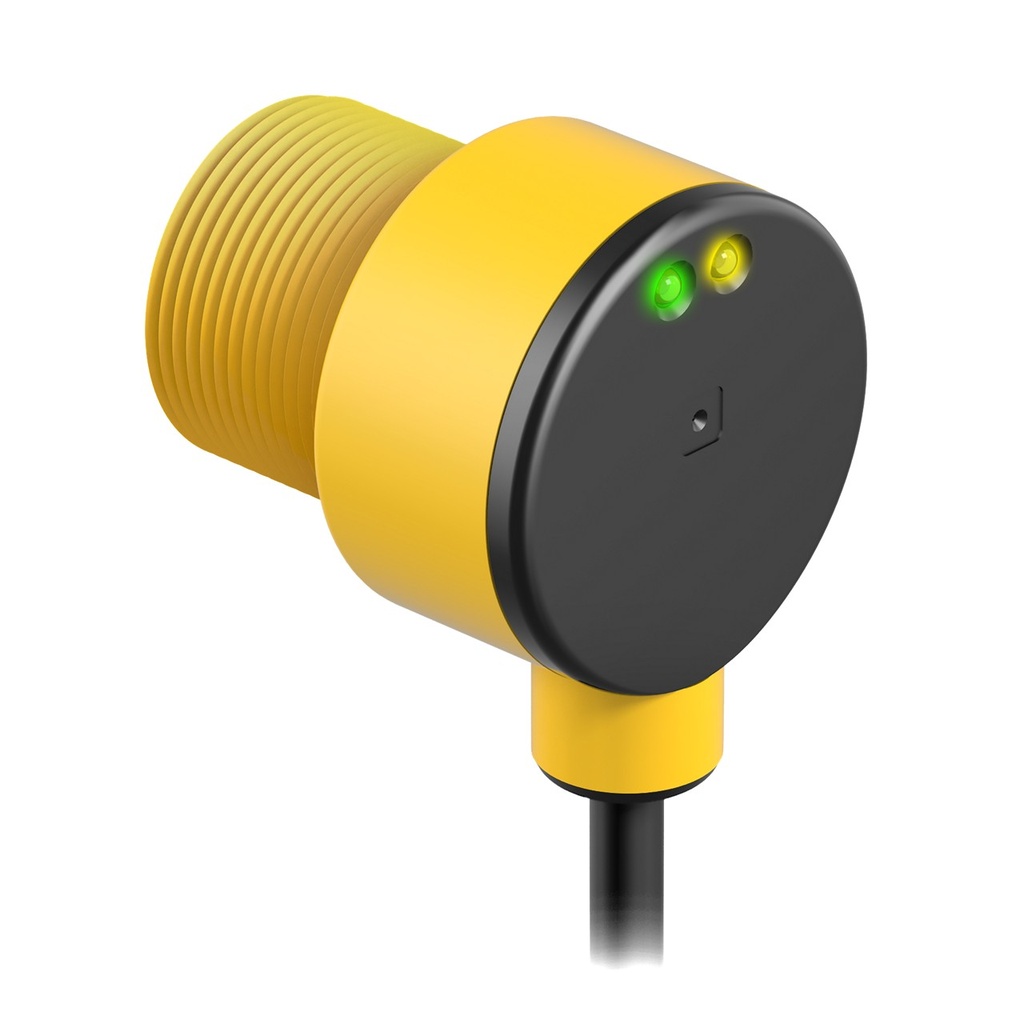

Ez-Beam T30 Series Namur Fixed-Field (T30AD9FF150)
Representative photo. Please check item description for details.

Ez-Beam T30 Series Namur Fixed-Field (T30AD9FF150)

https://www.branom.com/web/image/product.template/204632/image_1920?unique=c26756c
(0 review)

Features:

    EZ-BEAM T30 Series NAMUR Fixed-Field; Range: 0-150 mm Cutoff; Input: 5to 15V dc; Output: Constant Current Output ; 2m (6.5 ft) cable
  • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 5-15 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Sensing Beam Wavelength: 880
  • Housing Style: Barrel
  • Max Sensing Distance: 150 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Washdown Rated: Yes
  • Feature: Hazardous Area: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Output Response Time: 10 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: Yes
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/6P/12
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 177.00 177.0 USD $ 177.00

$ 177.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
