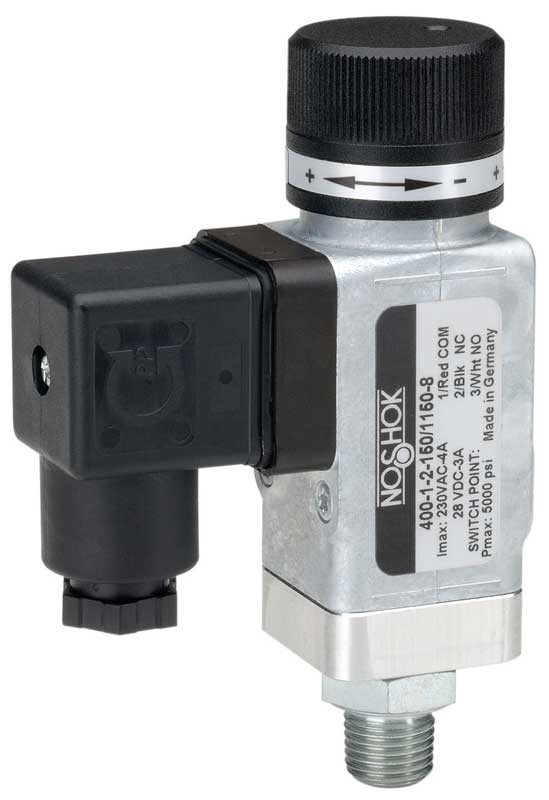

Representative photo. Please check item description for details.
400 Series Heavy-Duty Mechanical High Pressure Switch, 145 to 1,750 psig, 7/16"-20 SAE Male, Non-Adjustable, SPDT, DIN EN 175301-803 Form A
- Switch adjustment ranges from vacuum through 4,600 psig depending on model
- Standard Zinc-plated Steel with NBR diaphragm (< 225 psig); Steel piston with NBR seal (> 225 psig) wetted parts
- SPDT snap-action switch
- RoHS compliant
Applications:
- Hydraulics & pneumatics
- Mobile hydraulics
- Power generation
- Pumps & compressors
- Tank monitoring
- Water management
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Switch adjustment ranges from vacuum through 4,600 psig depending on model
- Standard Zinc-plated Steel with NBR diaphragm (< 225 psig); Steel piston with NBR seal (> 225 psig) wetted parts
- SPDT snap-action switch
- RoHS compliant
Applications:
- Hydraulics & pneumatics
- Mobile hydraulics
- Power generation
- Pumps & compressors
- Tank monitoring
- Water management
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Measurement Maximum | 1750.0 |
| Max Operating Pressure | 1750 psid |
| Max Operating Temperature | 176 °F |
| Case Material | Zinc Die-Cast |
| Measurement Minimum | 145 |
| Ingress Protection | IP65 |
| Switch Function | SPDT |
| Electrical Connector Type | DIN EN 175301-803 Form A |
