Watlow Tubular Flanged Heater
Representative photo. Please check item description for details.

Watlow Tubular Flanged Heater

https://www.branom.com/web/image/product.template/547502/image_1920?unique=c26756c
(0 review)

Flange Voltage: 460
Flange Wattage: 25000
Watt Density: 23.2

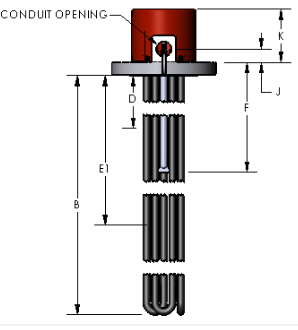

B Dimension (Immersed element length): 64.5000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 1
Flange Size: 4 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Steel
Baffles? No Baffles
Cold End Section below the Flange: 4.5625
Process Sensor: No Process Sensor
Hi-Limit Sensor: No Hi-Limit Sensor
Thermowell required? No
Stand-off Terminal Enclosure? Yes
Terminal Enclosure: Moisture Resistant (standard)
CE Low Volt Directive required? No
Nameplate Part Number: 4004-1528


    This combination does not exist.
