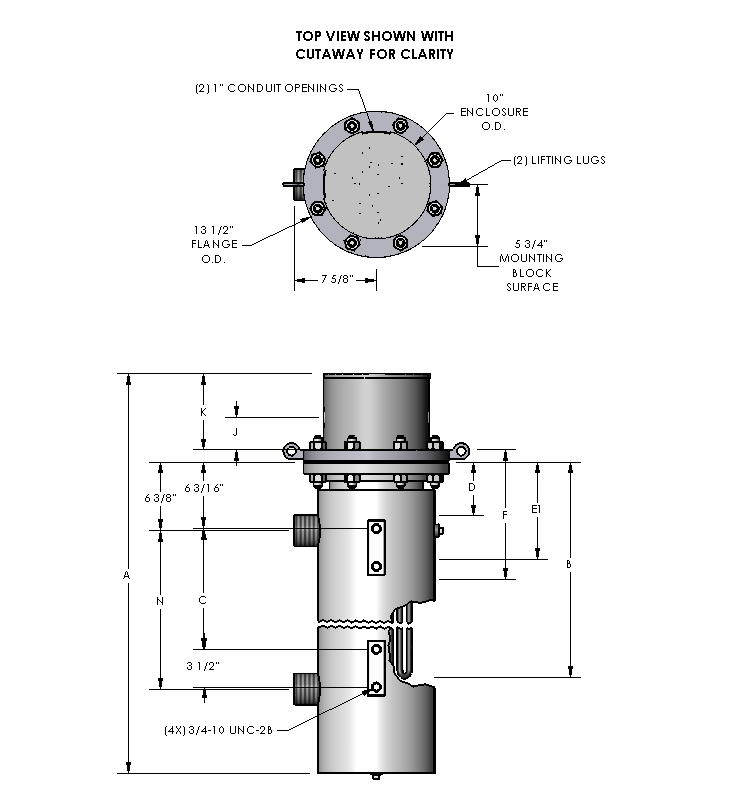

Watlow Circulation Flange Heater
Representative photo. Please check item description for details.

Watlow Circulation Flange Heater

https://www.branom.com/web/image/product.template/546480/image_1920?unique=c26756c
(0 review)

Circ Flange Voltage: 480
Circ Flange Wattage: 41664
Watt Density: 16.1
B Dimension (Immersed element length): 54.6875
Number of Elements: 18 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 2
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Passivate wetted parts? No
Process Sensor: Type K Thermocouple
Hi-Limit Sensor: No Hi-Limit Sensor
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 4001-2949 CF7
