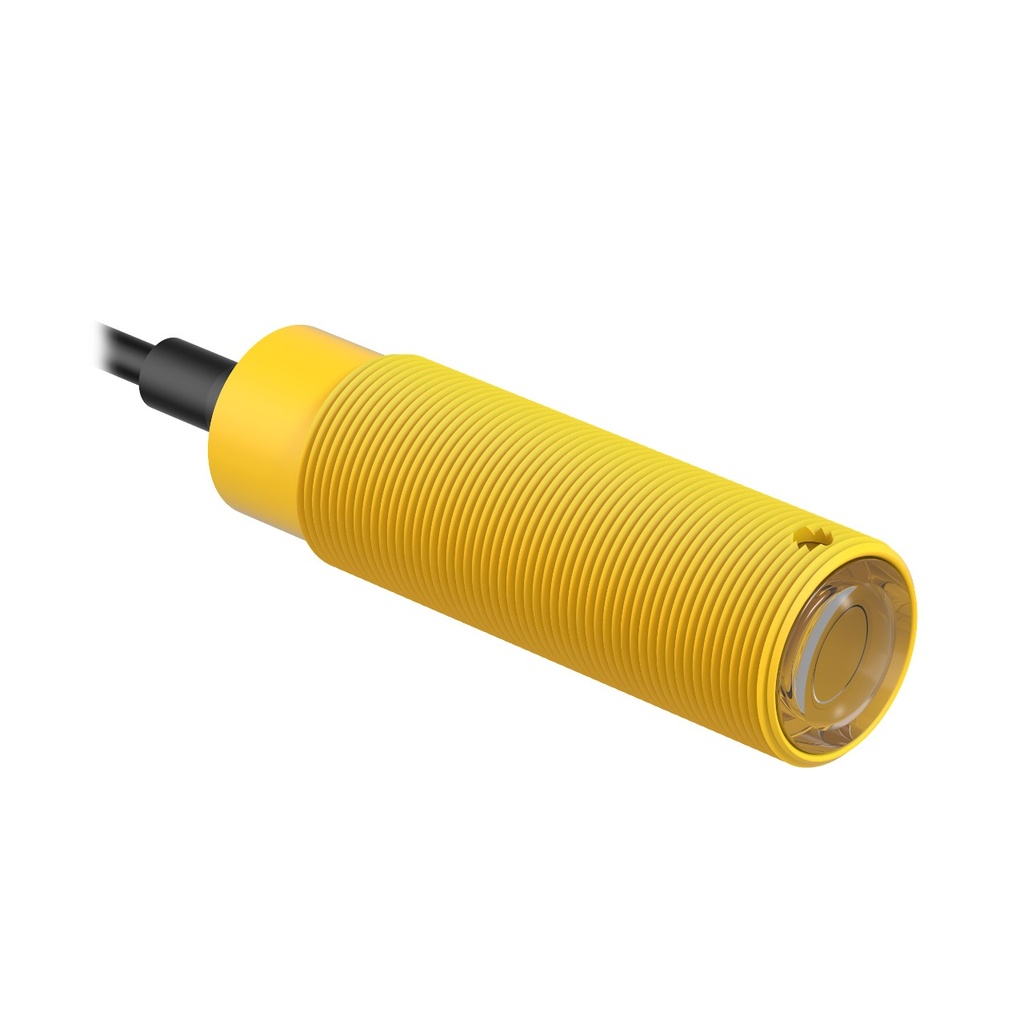

Representative photo. Please check item description for details.

EMITTER/RCVR B FREQUENCY (SM30PRLEB)

https://www.branom.com/web/image/product.template/22784/image_1920?unique=c26756c
(0 review)

Features:

  • SM30PRLEB EMITTER/RCVR B FREQUENCY
  • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 1500
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 150000 mm
  • Sensing Mode (Detailed): Emitter/Receiver Pair
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Pair
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 10 ms
  • Operation: Light/Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 536.00 536.0 USD $ 536.00

$ 536.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • SM30PRLEB EMITTER/RCVR B FREQUENCY
    • Power: DC
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 10-30 VDC
    • Ingress Protection: IP67
    • Repeatability (µs): 1500
    • Sensing Beam: Infrared LED
    • Housing Style: Barrel
    • Max Sensing Distance: 150000 mm
    • Sensing Mode (Detailed): Emitter/Receiver Pair
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Feature: Audible: No
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Pair
    • Feature: Water Detection: No
    • Number of Pins: 4
    • Output Response Time: 10 ms
    • Operation: Light/Dark Operate
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Input/Output: Discrete
    • Barrel Diameter: 30 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Cable
    • NEMA / UL: NEMA 6P
    • Cord/Cable Length: 2 m
    • Indicator Type: LED
