Q45BB6LVQ5 Retro Reflective

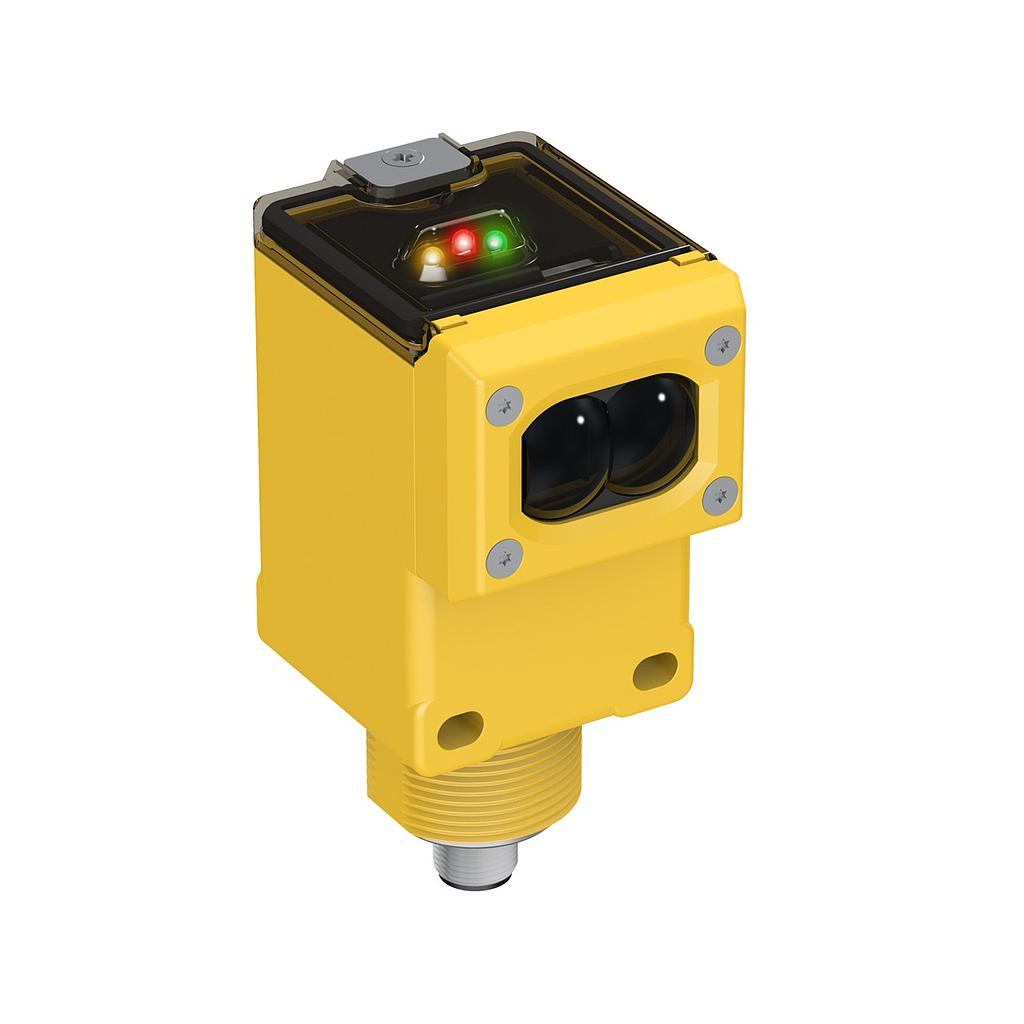

Representative photo. Please check item description for details.

Q45BB6LVQ5 Retro Reflective

https://www.branom.com/web/image/product.template/22780/image_1920?unique=c26756c
(0 review)

Features:

    Q45 Series: Retro; Range: 0.08 9 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; Euro M12 4-pin Integral QD
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 680
  • Housing Style: Rectangular
  • Max Sensing Distance: 9000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Non-Polarized
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED
