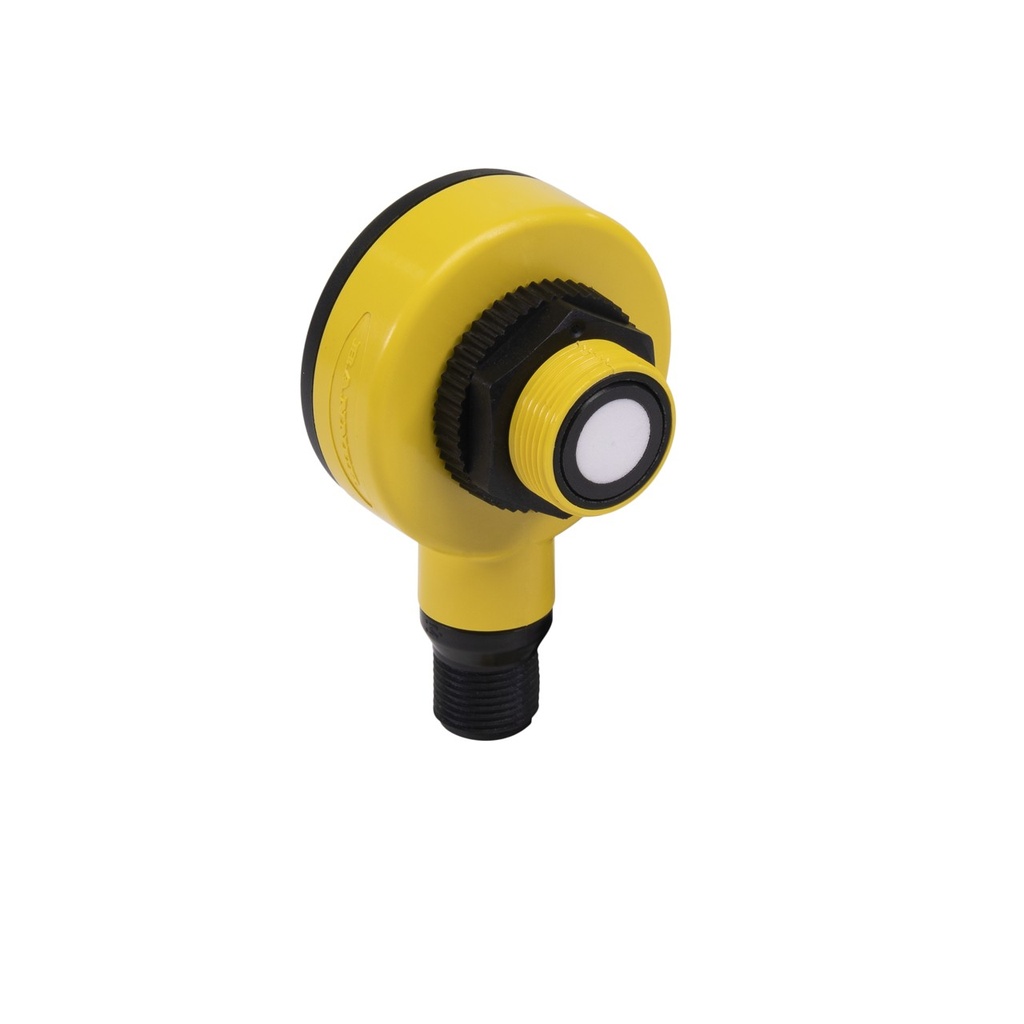

Representative photo. Please check item description for details.

T18U Series: Receiver (T18VP6URQ)

https://www.branom.com/web/image/product.template/22739/image_1920?unique=c26756c
(0 review)

Features:

  • T18U Series: Receiver
  • Range: 300
  • 600 mm
  • Input: 12-30V dc
  • Output: Complementary PNP
  • Quick-Disconnect Connector
  • Max Off-State Leakage Current (µA): <1 µA @ 30 VDC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power/Current Consumption (exclusive of load): 35 mA
  • Power Supply: 12-30 VDC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Sensing Beam: Ultrasonic
  • Housing Style: Rectangular w/ Threaded Mount
  • Max Sensing Distance: 600 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Device Type: Sensor
  • Housing Material_: PBT
  • Feature: RS-232: No
  • Feature: RS-485: No
  • RS-422: No
  • Feature: IO Link: No
  • Feature: Wireless: No
  • Feature: Quick Disconnect: Yes
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Number of Pins: 4
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Barrel Diameter: 18
  • Min Response Time: 1 ms
  • Vibration: MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Feature: Ultrasonic: Yes
  • Output Saturation Voltage PNP Outputs: < 1.5 V @ 10 mA / <2.0 V @ 150 mA
  • Max Discrete (Switched) Output (mA): 150 mA max. (each output) at 25°C, derated to 100 mA at 70°C (derate ≈ 1 mA per °C)
  • Min Sensing Distance: 300 mm
  • Feature: Clear Object Detection: Yes
  • Discrete (Switched) Outputs: PNP Complementary
  • Max Measurement Range: 500-1000 mm
  • Output Protection: Protected against overload and short circuit conditions. No false pulse upon receiver power-up
  • SSI: No
  • Profibus: No
  • Output Saturation Voltage NPN Outputs: <1.5 V @ 10 mA / <2.0 V @ 150 mA
  • Supply Protection Circuitry: Protected against reverse polarity and transient overvoltages
  • Mechanical Shock (Additional Comments): MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Barrel Thread: M18
  • Feature: Common Ethernet Protocol: No
  • Feature: PC Configurable: No
  • Indicator Type: LED
  • Rep Rate: 5 - 8 ms
  • Ultrasonic Frequency: 230 kHz

$ 281.00 281.0 USD $ 281.00
