  3. Q45 Series: Emitter (Q452E W/30)
Public Pricelist (v2)

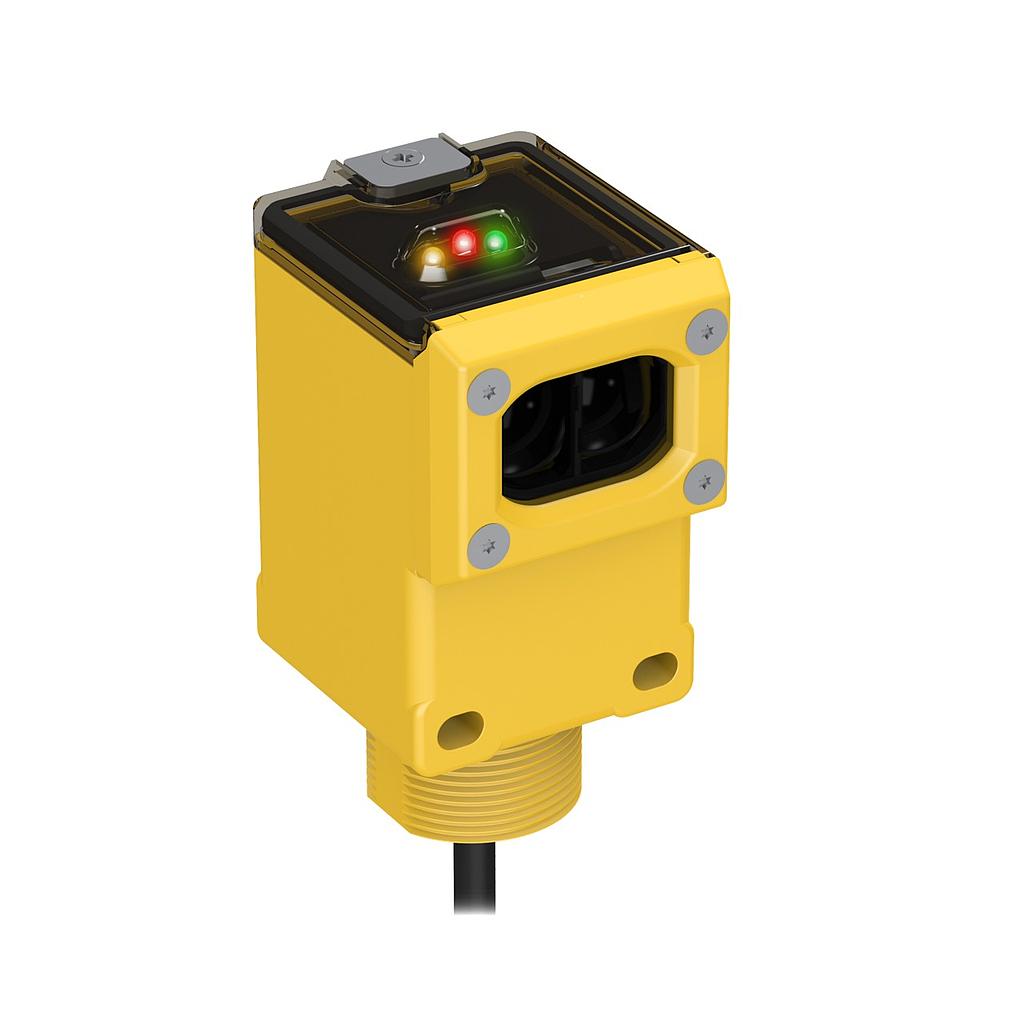

Representative photo. Please check item description for details.

Q45 Series: Emitter (Q452E W/30)

https://www.branom.com/web/image/product.template/22712/image_1920?unique=c26756c
(0 review)

Features:

  • Q45 Series: Emitter
  • Range: 60 m
  • Input: 90-250 V ac
  • Output: Not applicable
  • No outputs
  • 9 m (30 ft) Cable
  • Power: AC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 90-250 VAC
  • Ingress Protection: IP67
  • Repeatability (µs): 250
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 60000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Feature: Water Detection: No
  • Number of Pins: 2
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 9 m
  • Indicator Type: LED

$ 157.00 157.0 USD $ 157.00

$ 157.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Q45 Series: Emitter
    • Range: 60 m
    • Input: 90-250 V ac
    • Output: Not applicable
    • No outputs
    • 9 m (30 ft) Cable
    • Power: AC
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 90-250 VAC
    • Ingress Protection: IP67
    • Repeatability (µs): 250
    • Sensing Beam: Infrared LED
    • Housing Style: Rectangular
    • Max Sensing Distance: 60000 mm
    • Sensing Mode (Detailed): Emitter
    • Sensing Mode (General): Opposed
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: No
    • Feature: Audible: No
    • Feature: Chemical Resistant: No
    • Opposed Mode Emitter/Receiver: Emitter
    • Feature: Water Detection: No
    • Number of Pins: 2
    • Adjustments: N/A
    • Feature: Timing (Hold/Delay): No
    • Feature: Encapsulated: No
    • Barrel Diameter: 30 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Cable
    • NEMA / UL: NEMA 6P
    • Cord/Cable Length: 9 m
    • Indicator Type: LED
