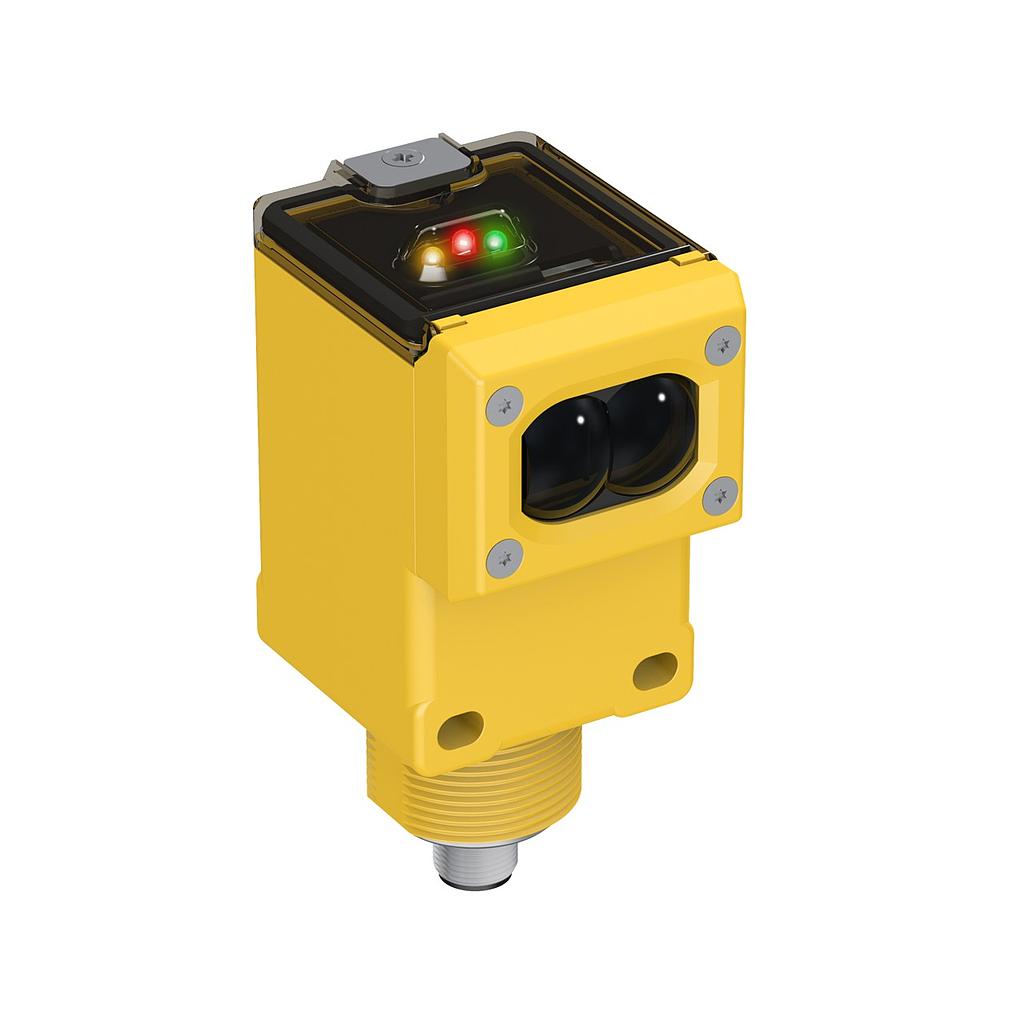

Q45 NAMUR: Diffuse (Q45AD9DLQ)

https://www.branom.com/web/image/product.template/22646/image_1920?unique=c26756c
(0 review)

Features:

  • Q45 NAMUR: Diffuse
  • Range: 1 m
  • Input: 5-15V dc
  • Output: NAMUR
  • Euro M12 4-pin Integral QD
  • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 5-15 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 1000 mm
  • Sensing Mode (Detailed): Diffuse
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: No
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED
