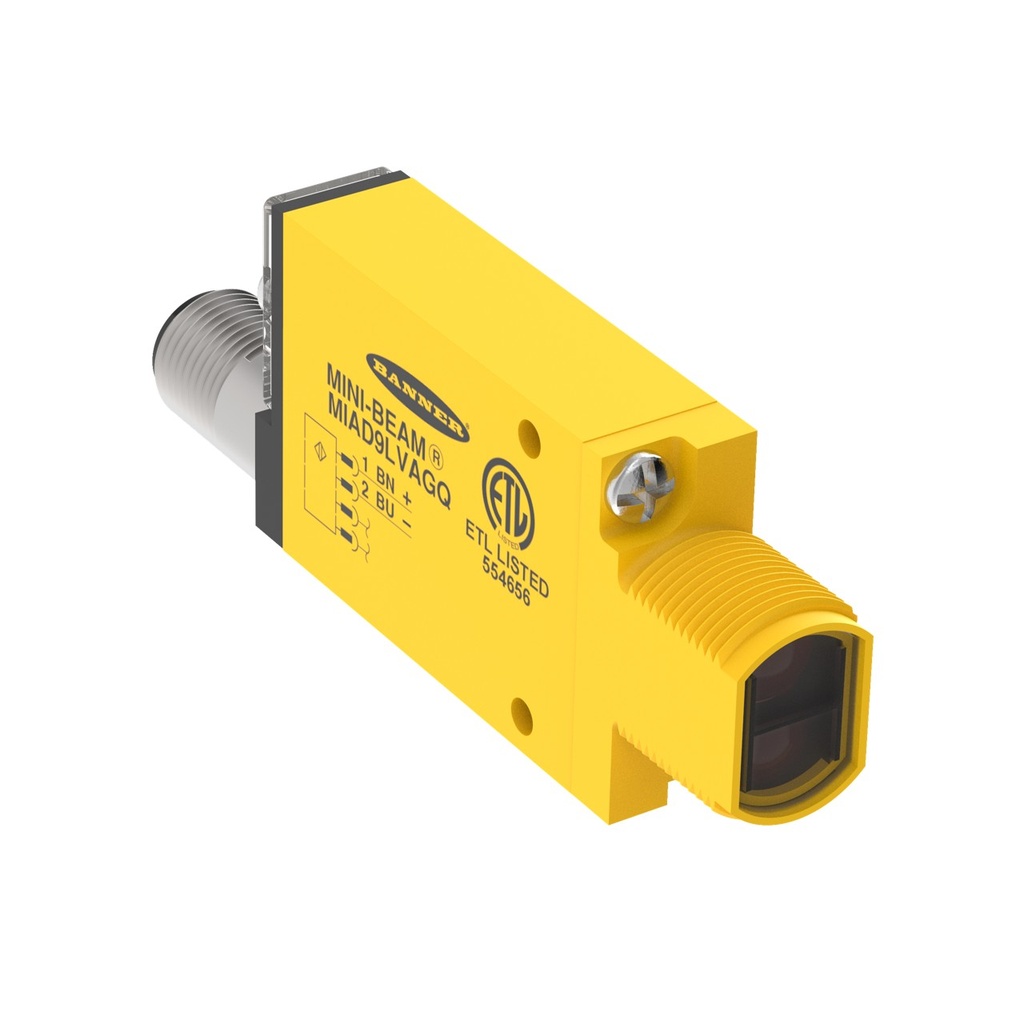

MINI-BEAM NAMUR: Polarized Retro (MIAD9LVAGQ)

https://www.branom.com/web/image/product.template/22596/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM NAMUR: Polarized Retro
  • Range: 50 mm to 2 m
  • Input: 5-15V dc
  • Output: NAMUR
  • Euro M12 4-pin Integral QD
    • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 5-15 VDC
  • Ingress Protection: IP67
  • Sensing Beam: Visible Red LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 2000 mm
  • Sensing Mode (Detailed): Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 5 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 18 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Indicator Type: LED

$ 200.00 200.0 USD $ 200.00

$ 200.00

Not Available For Sale
