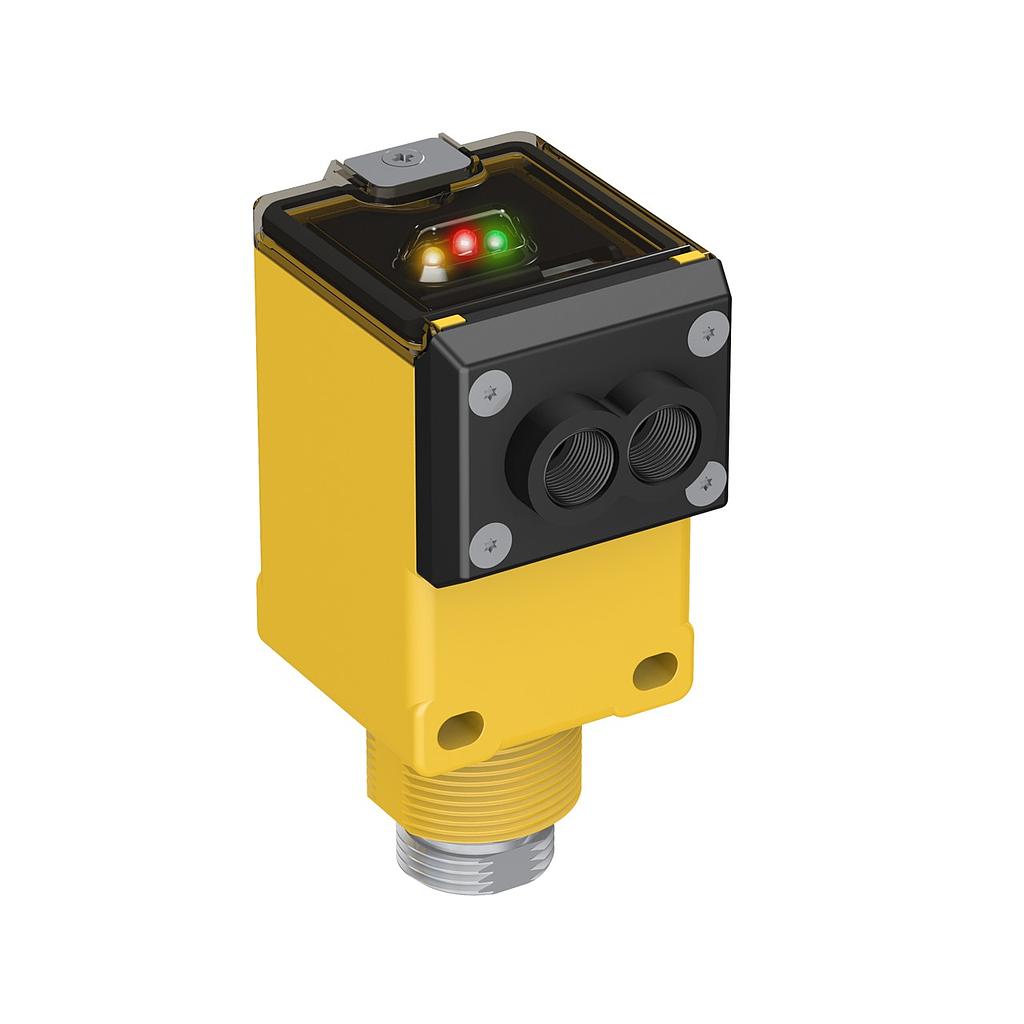

Q45 Series: Infrared Glass Fiber Optic (Q45BW22FQ)

https://www.branom.com/web/image/product.template/22508/image_1920?unique=c26756c
(0 review)

Features:

  • Q45 Series: Infrared Glass Fiber Optic
  • Range: depends on fiber
  • Input: 90-250 V ac
  • Output: SPST Solid-state Relay
  • Quick-Disconnect Connector
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 90-250 VAC
  • Delay at Power-Up: 100 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Housing Style: Rectangular
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Number of Pins: 3
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Input/Output: Discrete
  • Min Response Time: 2 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Infrared
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Fiber Termination Type: Glass Fiber Termination
  • Indicator Type: Indicator LED

$ 190.00 190.0 USD $ 190.00

$ 190.00

Not Available For Sale
