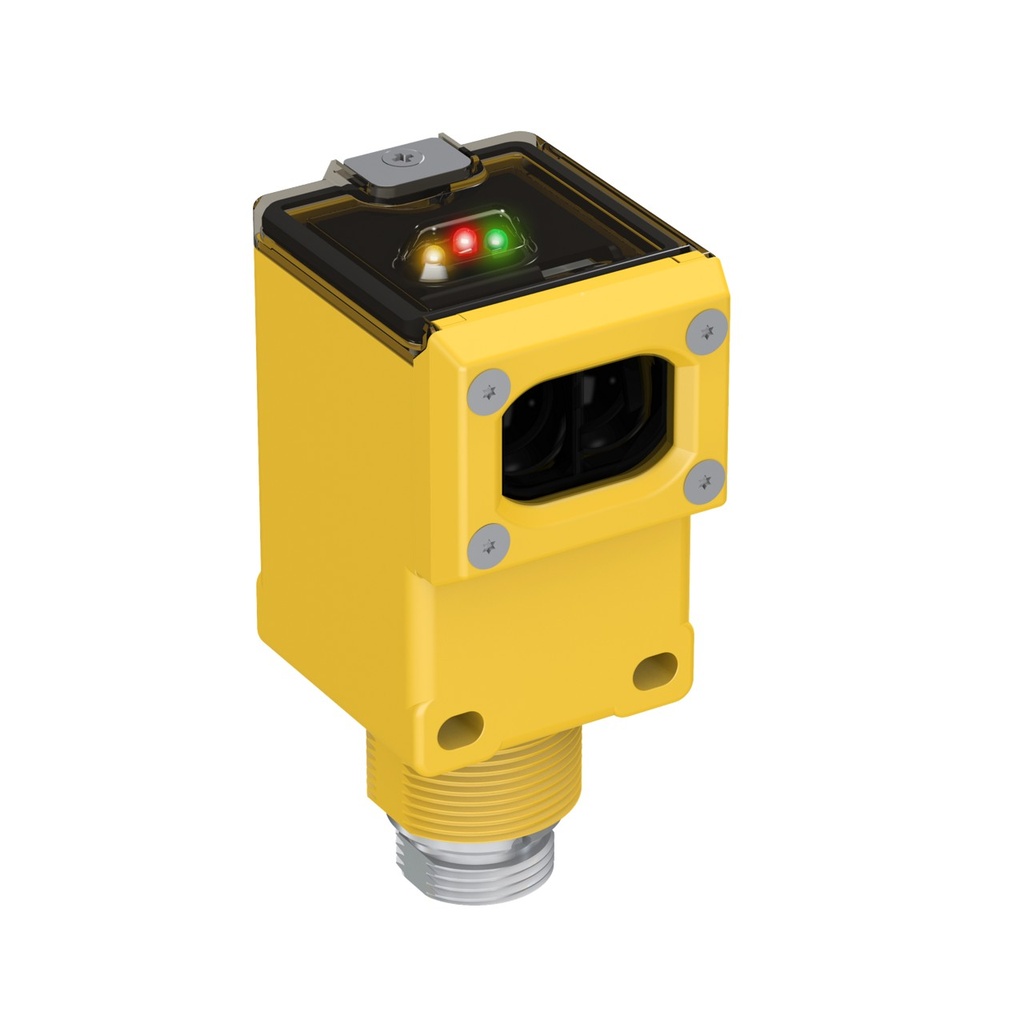

Representative photo. Please check item description for details.

Q45 Series: Retro (Q45BW22LVQ)

https://www.branom.com/web/image/product.template/22506/image_1920?unique=c26756c
(0 review)

Features:

  • Q45 Series: Retro
  • Range: 0.08
  • 9 m
  • Input: 90-250 V ac
  • Output: SPST Solid-state Relay
  • Mini 3-pin Integral QD
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 90-250 VAC
  • Delay at Power-Up: 100 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 500
  • Sensing Beam: Visible Red LED
  • Sensing Beam Wavelength: 680
  • Housing Style: Rectangular
  • Max Sensing Distance: 9000 mm
  • Sensing Mode (Detailed): Non-Polarized
  • Sensing Mode (General): Retroreflective
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 2 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): Yes
  • Feature: Encapsulated: No
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED

$ 190.00 190.0 USD $ 190.00

$ 190.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • Q45 Series: Retro
    • Range: 0.08
    • 9 m
    • Input: 90-250 V ac
    • Output: SPST Solid-state Relay
    • Mini 3-pin Integral QD
    • Min Operating Temperature: -40 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 90-250 VAC
    • Delay at Power-Up: 100 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 500
    • Sensing Beam: Visible Red LED
    • Sensing Beam Wavelength: 680
    • Housing Style: Rectangular
    • Max Sensing Distance: 9000 mm
    • Sensing Mode (Detailed): Non-Polarized
    • Sensing Mode (General): Retroreflective
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Hazardous Area: No
    • DeviceNet: No
    • Feature: IO Link: No
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: 7/8 in. (Mini)
    • Feature: Chemical Resistant: No
    • Feature: Water Detection: No
    • Number of Pins: 3
    • Output Response Time: 2 ms
    • Operation: Light/Dark Operate
    • Adjustments: Potentiometer
    • Feature: Timing (Hold/Delay): Yes
    • Feature: Encapsulated: No
    • Input/Output: Solid-State AC Switch
    • Barrel Diameter: 30 mm
    • Feature: Remote Teach: No
    • Feature: Intrinsically Safe: No
    • Connection Type: Integral QD
    • NEMA / UL: NEMA 6P
    • Indicator Type: LED
