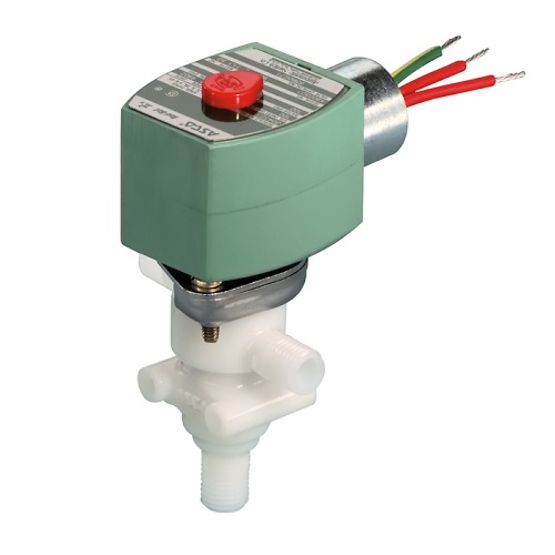

360 Series 1/4" OD Compression NO Plastic Solenoid Valve
The ASCO Series 360 are plastic body solenoid valves designed for
dispensing, damper control, and water applications in analytical and
diagnostic equipment. The valves´ operation is similar to ASCO´s
renowned 320 Series valve, but with a plastic body. The 360 Series is
available with compression fitting ends for metal or plastic tubing to
save installation cost.
Features
- Direct acting for reliable performance
- Resilient seating for tight shutoff
- Mountable in any position
The ASCO Series 360 are plastic body solenoid valves designed for
dispensing, damper control, and water applications in analytical and
diagnostic equipment. The valves´ operation is similar to ASCO´s
renowned 320 Series valve, but with a plastic body. The 360 Series is
available with compression fitting ends for metal or plastic tubing to
save installation cost.
Features
- Direct acting for reliable performance
- Resilient seating for tight shutoff
- Mountable in any position
Specifications
| 8360 Series NO Plastic Sol Valve | |
|---|---|
| Product Specifications | [G067] 1/16" Orifice | .07 Cv Flow, [G069] 3/32" Orifice | .11 Cv Flow |
| Solenoid Option | None, [J] Junction Box, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 1/4 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Plastic |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | NBR |
| Valve: Enclosure Type | Watertight |
| Valve: Flow Factor (Cv) | 0.07, 0.11 |
| Valve: Media | Air-Inert Gas, Water |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 125 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 1/16in, 3/32in, 1/8in |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 3-Way Normally Open |
| Valve: Core Tube | Stainless Steel |
| Valve: Disc-Holder | CA |
