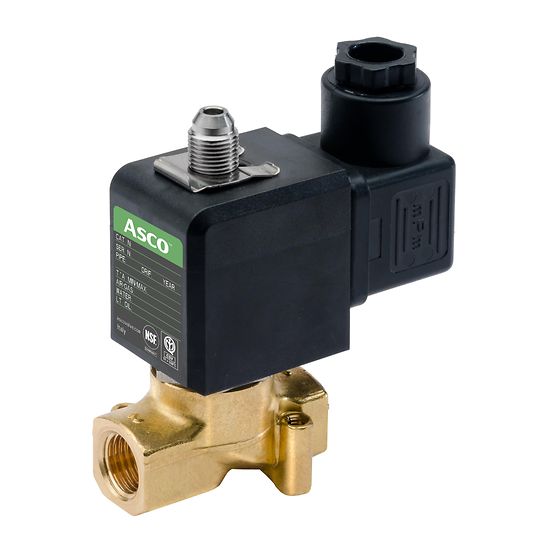

Representative photo. Please check item description for details.
356 Series, Gen Purpose, NC Subminiature Solenoid Valve
The ASCO Series 356, also known as 8356, 3-way compact solenoid valves have a lightweight, compact design for the control of single-acting actuators or filling or draining cycles. The brass or stainless steel constructions feature a wide range of elastomers and tight shutoff poppets for specialty service applications.
Features
- Reliable, proven compact design for long service lifetimes
- Standard manual operator allows easy installation
- Mountable in any position
- Valves do not require a minimum operating pressure
- Wide range of flow and pressure ratings are available
- Quick disassembly of core tube for easy maintenance of internal parts
The ASCO Series 356, also known as 8356, 3-way compact solenoid valves have a lightweight, compact design for the control of single-acting actuators or filling or draining cycles. The brass or stainless steel constructions feature a wide range of elastomers and tight shutoff poppets for specialty service applications.
Features
- Reliable, proven compact design for long service lifetimes
- Standard manual operator allows easy installation
- Mountable in any position
- Valves do not require a minimum operating pressure
- Wide range of flow and pressure ratings are available
- Quick disassembly of core tube for easy maintenance of internal parts
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| 8356 Series GP NC 3-Way Compact Valve | |
|---|---|
| Product Specifications | [A001] Brass | 1/8 Pipe | 3/64" Orifice | 0.06 / 0.05 Cv Flow (Ports 2 / 3), [A002] Brass | 1/8 Pipe | 1/16" Orifice | 0.09 / 0.05 Cv Flow (Ports 2 / 3), [A004] Brass | 1/8 Pipe | 3/32" Orifice | 0.13 / 0.05 Cv Flow (Ports 2 / 3), [B045] Brass | 1/8 Pipe | 7/64" Orifice | 0.15 / 0.05 Cv Flow (Ports 2 / 3), [A013] Stainless Steel | 1/8 Pipe | 3/64" Orifice | 0.06 / 0.05 Cv Flow (Ports 2 / 3), [A014] Stainless Steel | 1/8 Pipe | 1/16" Orifice | 0.09 / 0.05 Cv Flow (Ports 2 / 3), [A016] Stainless Steel | 1/8 Pipe | 3/32" Orifice | 0.13 / 0.05 Cv Flow (Ports 2 / 3), [B046] Stainless Steel | 1/8 Pipe | 7/64" Orifice | 0.15 / 0.05 Cv Flow (Ports 2 / 3) |
| Enclosure Options | [SC] Class F - High Temperature - DIN Connection, [U] Open Frame - 18" Leads |
| Optional Lead Length | Standard, 18" Leads [D] |
| Optional Seat/Disc/Etc. Material | [NV] Oxygen / FKM, [V] FKM |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Bonnet | Plated Steel, Stainless Steel |
| Valve: Pipe Size | 1/8 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | EPDM, FKM |
| Valve: Enclosure Type | Standard, Watertight |
| Valve: Flow Factor (Cv) | 0.06, 0.09, 0.13, 0.15 |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
| Valve: Max Temperature °F | 140 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 3/64in, 1/16in, 3/32in, 7/64in |
| Valve: Seal Material | FKM, EPDM |
| Valve: Shading Coil | Copper |
| Valve: Springs | Stainless Steel |
| Valve: Function | 3-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | 15 |
