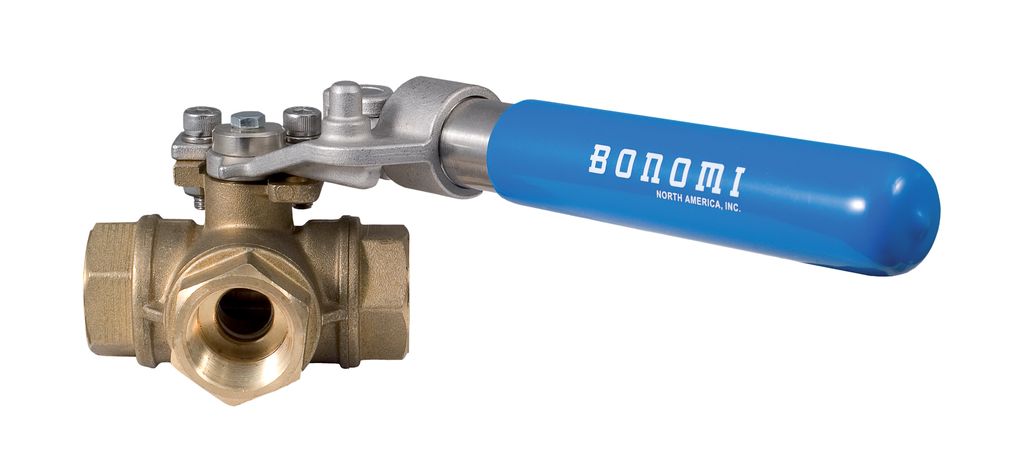

355N SRL / 365N SRL Combi-Sfer Series 3-Way Brass Ball Valve, FNPT, Threaded Standard Port, with Deadman Spring Return Handle
355N SRL / 365N SRL Combi-Sfer Series 3-way brass ball valve, FNPT, threaded standard port, with deadman spring return handle.
Features
Pressure rating 400 WOG-100 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.

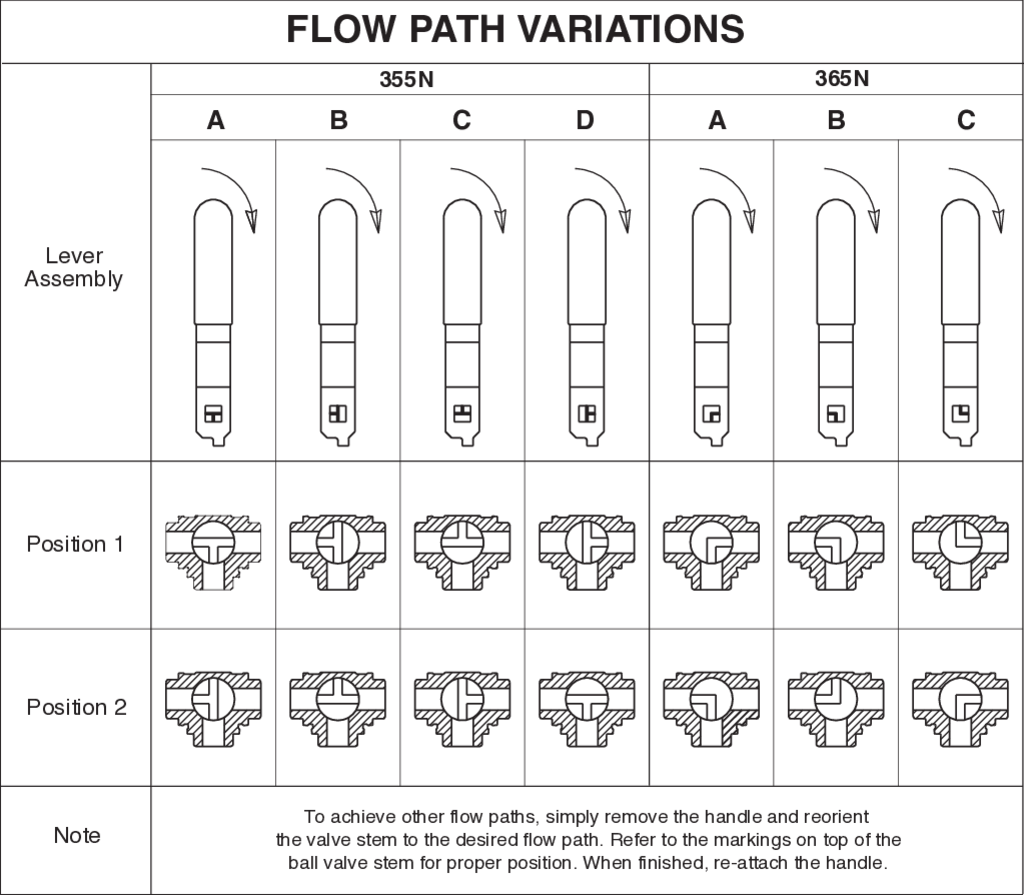

Four seat design for sealing between pressurized ports.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage underextreme duty or low pressure applications.
A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.
Model Notes
355N SRL: deadman lever - size 1/4” to 2”
365N SRL: deadman lever - size 1/4” to 2”
355N SRL / 365N SRL Combi-Sfer Series 3-way brass ball valve, FNPT, threaded standard port, with deadman spring return handle.
Features
Pressure rating 400 WOG-100 WSP.
Temperature range -4°F to +366°F.
ANSI B1.20.1 connections.
Blow-out proof stem, chrome plated brass ball and double O-ring stem packing.
PTFE seats with O-ring backing for low operating torque.
100% electronically tested in the open and closed position at 80 psi.
Not to be used for drinking water.
Four seat design for sealing between pressurized ports.
The Buna O-ring is fitted to the stem of the valve as the best possible protection against potential gas leakage underextreme duty or low pressure applications.
A secondary PTFE stem seal will also assure that the valve is suitable for use up to 366°F.
Model Notes
355N SRL: deadman lever - size 1/4” to 2”
365N SRL: deadman lever - size 1/4” to 2”
Specifications
| Model | [355N SRL] Deadman Lever, T-Flow - size 1/4" to 2", [365N SRL] Deadman Lever, L-Flow - size 1/4" to 2" |
| Valve Size | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
