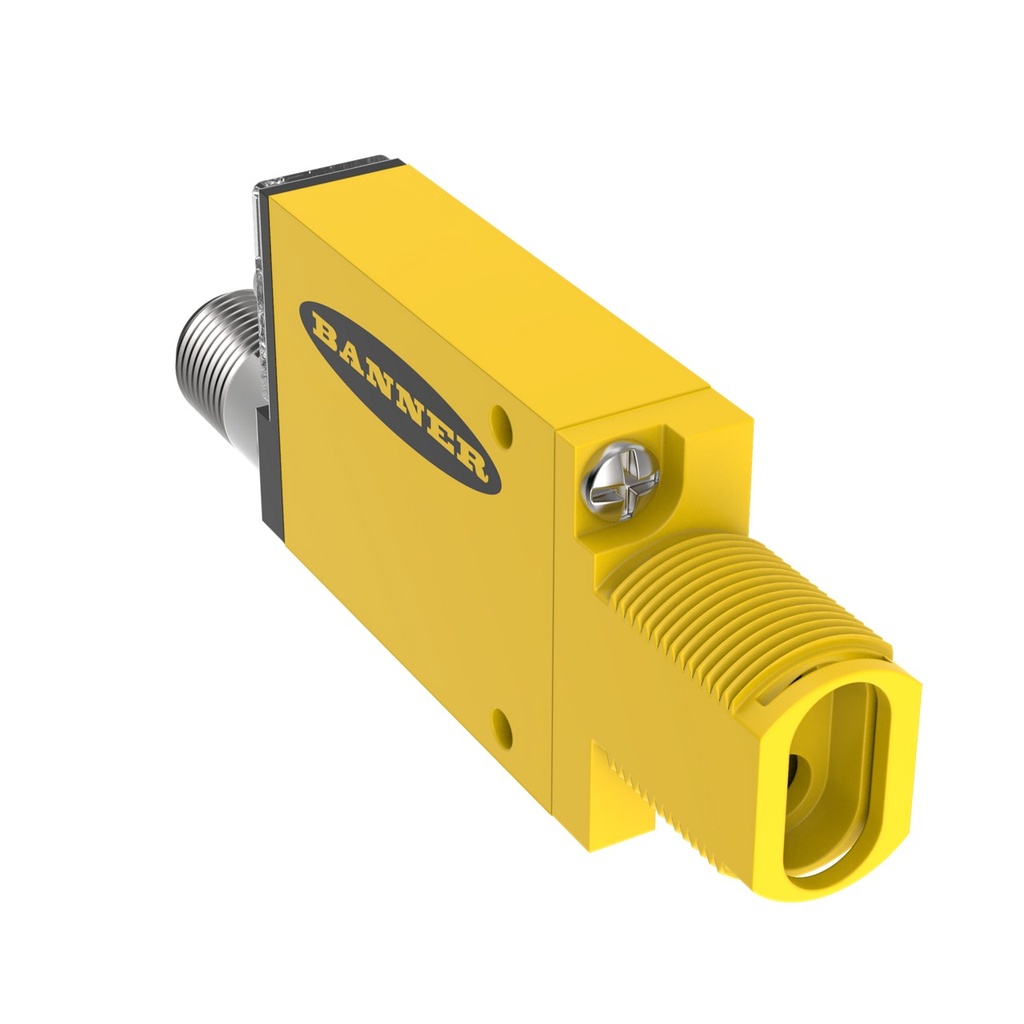

MINI-BEAM: Visible Red 650 nm Glass Fiber Optic (SM2A312FVQD)

https://www.branom.com/web/image/product.template/22144/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Visible Red 650 nm Glass Fiber Optic
  • Range: depends on fiber
  • Input: 24-240 V ac
  • Output: SPST Solid-state 2-Wire
  • Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 2600
  • Housing Style: Rectangular w/M18 Mount
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Number of Pins: 3
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 8 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Glass Only
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Fiber Termination Type: Glass Fiber Termination
  • Indicator Type: Indicator LED

$ 205.00 205.0 USD $ 205.00

$ 205.00

Not Available For Sale
