Description
Features:

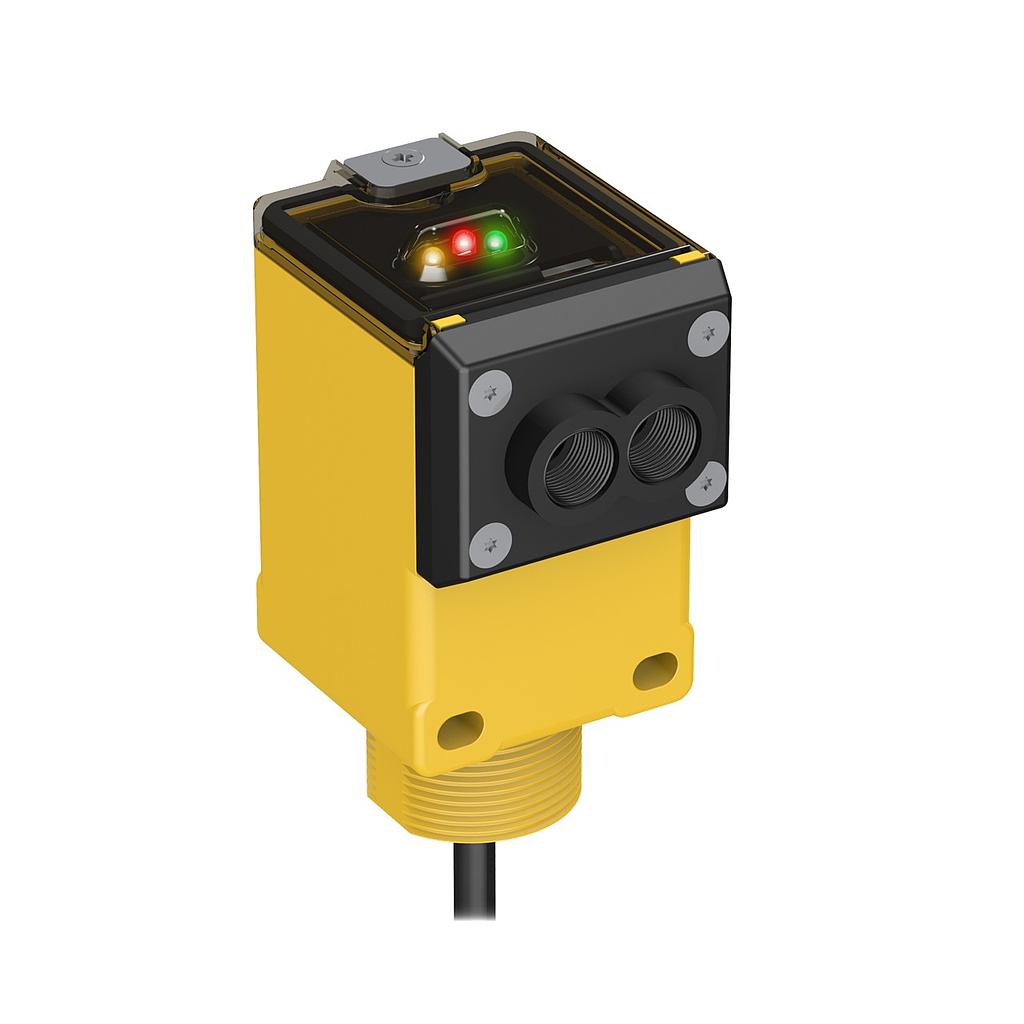

- Q45 Series: Infrared Glass Fiber Optic
- Range: depends on fiber
- Input: 90-250 V ac
- Output: SPDT Electromechanical Relay
- 2 m (6.5 ft) Cable
- Min Operating Temperature: -40 °C
- Max Operating Temperature: 70 °C
- Power Supply: 90-250 VAC
- Delay at Power-Up: 100 ms
- Feature: Bussable Power: No
- Ingress Protection: IP67
- Repeatability (µs): 500
- Housing Style: Rectangular
- Max Relative Humidity: 90% @ 50 °C
- Housing Material_: Thermoplastic
- Feature: Hazardous Area: No
- Feature: IO Link: No
- Feature: Quick Disconnect: No
- Feature: Audible: No
- Number of Pins: 5
- Adjustments: Potentiometer
- Feature: Timing (Hold/Delay): Yes
- Input/Output: Discrete
- Min Response Time: 15 ms
- Output Type (Specific): Single Discrete
- Fiber Type: Glass Only
- Color LED - Amplifiers: Infrared
- Feature: Remote Teach: No
- Feature: Intrinsically Safe: No
- Connection Type: Cable
- NEMA / UL: NEMA 6P
- Cord/Cable Length: 2 m
- Fiber Termination Type: Glass Fiber Termination
- Indicator Type: Indicator LED
