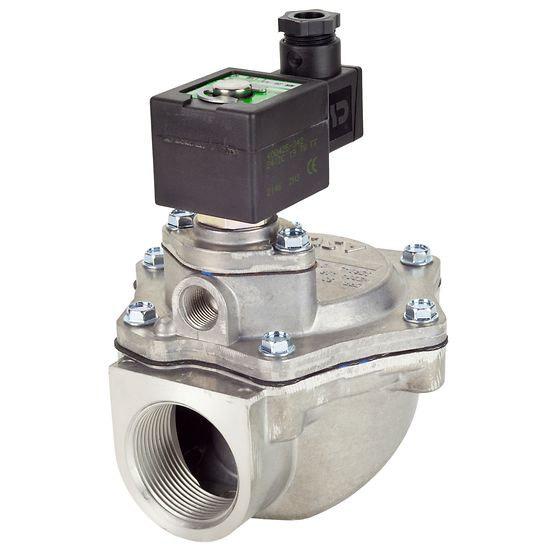

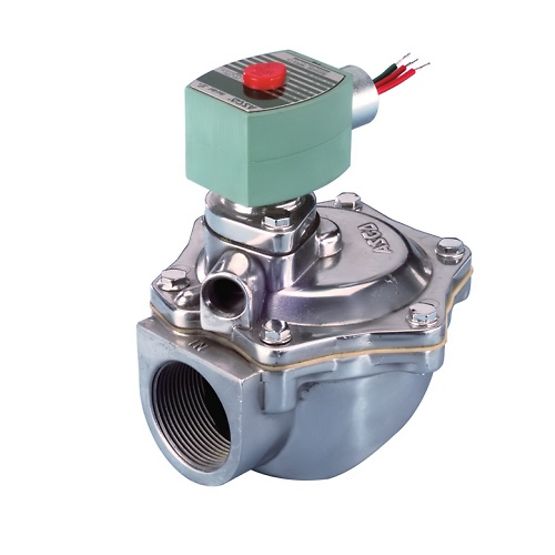

353 Series Pulse Solenoid Valve
The ASCO Series 353, also known as 8353, pulse valve is a solenoid pilot
operated diaphragm valve specially designed to deliver extremely fast
pulsing in reverse-jet dust collector systems. With its high flow rates,
higher peak pressure and the fastest response times on the market it
delivers optimal filter cleaning performance, while using significantly
less air. This results in energy savings for the user. The valve stands
out for its long life, high peak pressure, extended temperature range,
and faster installation with the patented Quick Mount Clamp connection.
To find out how much air you could save, visit our savings calculator.
Features
- Extremely fast open / close response time
- High peak pressure for more effective bag cleaning
- High flow Cv(s) to 140 m3h for effective bag cleaning
- Quick mount Clamp connection eliminates thread cutting and separate sealing
- Integral pilot has molded epoxy coils with available options
- Valves may be mounted in any position
- Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA
- Available will all Explosion proof solenoids: NEMA, Ex d, Ex mb, Ex e mb
- Available in a low temperature version, which is suitable for use at temperatures down to -40° C, as well as a high temperature version which is suitable up to + 140° C
The ASCO Series 353, also known as 8353, pulse valve is a solenoid pilot
operated diaphragm valve specially designed to deliver extremely fast
pulsing in reverse-jet dust collector systems. With its high flow rates,
higher peak pressure and the fastest response times on the market it
delivers optimal filter cleaning performance, while using significantly
less air. This results in energy savings for the user. The valve stands
out for its long life, high peak pressure, extended temperature range,
and faster installation with the patented Quick Mount Clamp connection.
To find out how much air you could save, visit our savings calculator.
Features
- Extremely fast open / close response time
- High peak pressure for more effective bag cleaning
- High flow Cv(s) to 140 m3h for effective bag cleaning
- Quick mount Clamp connection eliminates thread cutting and separate sealing
- Integral pilot has molded epoxy coils with available options
- Valves may be mounted in any position
- Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA
- Available will all Explosion proof solenoids: NEMA, Ex d, Ex mb, Ex e mb
- Available in a low temperature version, which is suitable for use at temperatures down to -40° C, as well as a high temperature version which is suitable up to + 140° C
Specifications
| 8353 Series Pulse Solenoid Valve | |
|---|---|
| Product Specifications | [G041] Integrated Pilot | 1" Pipe | 1-1/8" Orifice | 20 Cv Flow, [G006] Integrated Pilot | 1" Pipe | 1-5/8" Orifice | 18 Cv Flow, [G005] Integrated Pilot | 1-1/4" Pipe | 1-5/8" Orifice | 20 Cv Flow, [G001] Integrated Pilot | 1-1/2" Pipe | 1-1/2" Orifice | 35 Cv Flow, [J039] Integrated Pilot | 1-1/2" Pipe | 2" Orifice | 53 Cv Flow, [G061] Integrated Pilot | 1-1/2" Pipe | 2" Orifice | 48 Cv Flow, [G002] Integrated Pilot | 2" Pipe | 2" Orifice | 60 Cv Flow, [G050] Integrated Pilot | 2" Pipe | 2" Orifice | 76 Cv Flow, [G007] Integrated Pilot | 2-1/2" Pipe | 3" Orifice | 82 Cv Flow, [G008] Integrated Pilot | 3" Pipe | 3" Orifice | 140 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EF] Explosionproof (G041), [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KP] Class F - Intermediate Power - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection, [ZT] Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM (G050, G061, J039), [V] FKM (G001, G002, G041) |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1-1/4 in, 2 in, 1-1/2 in, 3/4 in, 1 in, 2-1/2in |
| Valve: Orifice | 3/4in, 1-1/8in, 1-5/8in, 1-1/2in, 2in, 3in |
| Valve: Body Material | Aluminum |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Actuation | Solenoid - Air Pilot |
| Valve: Function | 2-Way Normally Closed |
| Valve: Diaphragm Material | NBR, HYT, CR |
| Valve: Media | Air-Inert Gas |
| Valve: Brand | Asco |
| Valve: Disc Material | NBR, PA |
| Valve: Seal Material | NBR |
| Valve: Max Temperature °F | 185 |
| Valve: Flow Factor (Cv) | 20.0, 35.0, 53.0, 76.0, 82.0 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
