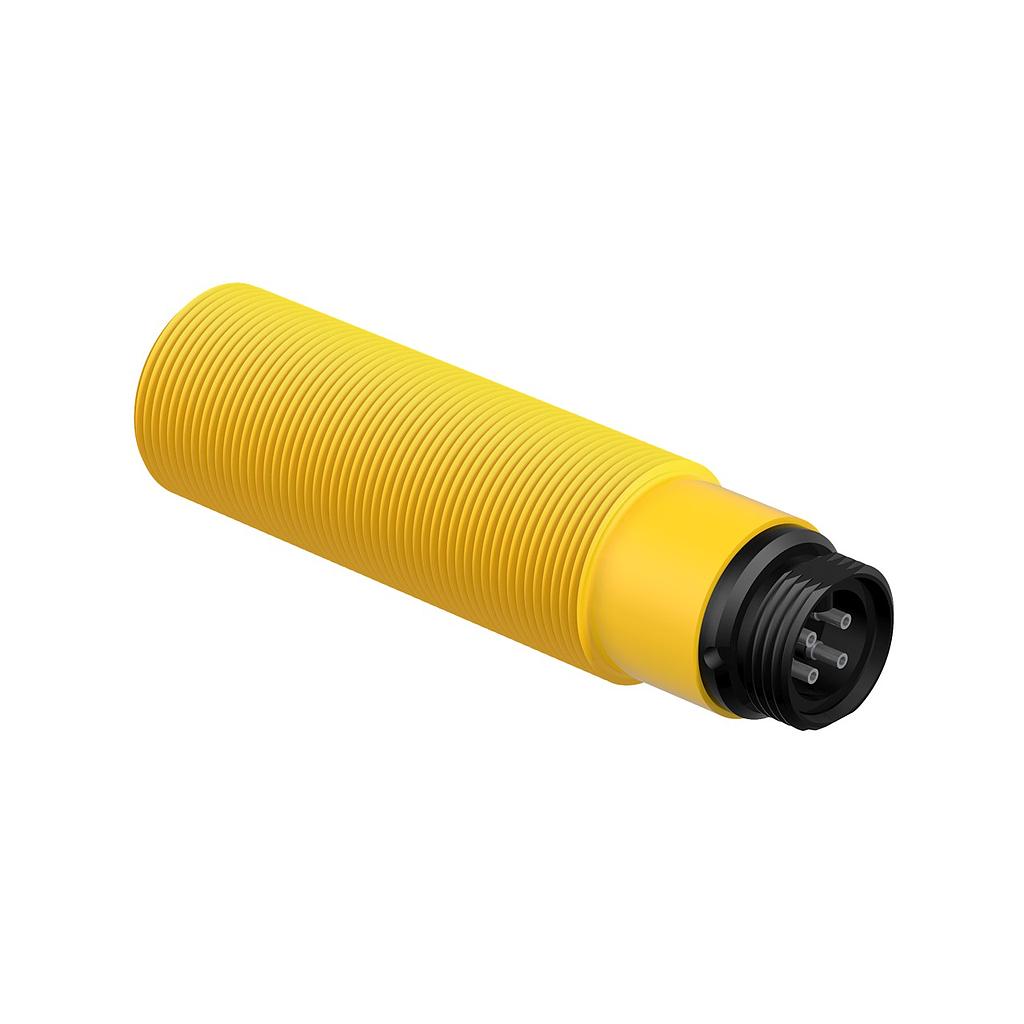

SMI30 Series: Receiver - Frequency A (SMI30RN6RYQ)

https://www.branom.com/web/image/product.template/22092/image_1920?unique=c26756c
(0 review)

Features:

  • SMI30 Series: Receiver
  • Frequency A
  • Range: 60 m
  • Input: 10-30 V dc
  • Output: Dark Operate
  • I.S. Interface
  • Mini 3-pin Integral QD
    • Power: DC
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 360
  • Sensing Beam: Infrared LED
  • Housing Style: Barrel
  • Max Sensing Distance: 140000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: Yes
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 7/8 in. (Mini)
  • Feature: Chemical Resistant: No
  • Opposed Mode Emitter/Receiver: Receiver
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 10 ms
  • Operation: Dark Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: Yes
  • Connection Type: Integral QD
  • NEMA / UL: NEMA 6P
  • Indicator Type: LED

$ 224.00 224.0 USD $ 224.00

$ 224.00

Not Available For Sale
