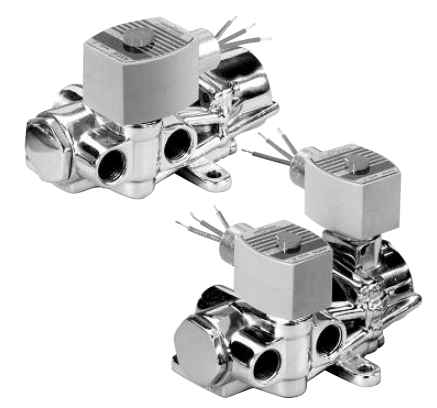

344 Series 4-Way, Dual Solenoid, Piston Valve
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Sturdy, robust construction
- Piston-operated poppet design provides high flow
- For use with air or water
- Wide range of sizes and flow rates
- Single or dual solenoid constructions
- Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
- Mountable in any position
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Sturdy, robust construction
- Piston-operated poppet design provides high flow
- For use with air or water
- Wide range of sizes and flow rates
- Single or dual solenoid constructions
- Dual solenoid can be shifted with a momentary signal and remain in position even if electrical power is lost
- Mountable in any position
Specifications
| 8344 Series 4-Way Dual Sol Piston Valve | |
|---|---|
| Product Specifications | [G044] Brass | 1/4" Pipe | 1/4" Orifice | .80 Cv Flow, [G080] Brass | 3/8" Pipe | 3/8" Orifice | 1.4 Cv Flow, [G050] Brass | 3/8" Pipe | 3/8" Orifice | 1.4 Cv Flow, [G082] Brass | 1/2" Pipe | 3/8" Orifice | 1.4 Cv Flow, [G054] Brass | 3/4" Pipe | 3/4" Orifice | 5.2 Cv Flow, [G056] Brass | 1" Pipe | 3/4" Orifice | 5.2 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EF] Explosionproof (G050, G054, G056), [J] Junction Box, [JB] Factory Assembled Junction Box, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [ZT] Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, [L] Continuous Leads, [L] Continuous Leads (G050, G054, G056) |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Optional Seat/Disc/Etc. Material | None |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Media | Air-Inert Gas, Water |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Body Material | Copper Alloy |
| Valve: Orifice | 1/4in, 3/8in, 3/4in |
| Valve: Pipe Size | 1/4 in, 3/8 in, 3/4 in, 1 in, 1/2 in |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Pilot Seat Cartridge | CA |
| Valve: Core Tube | Stainless Steel |
| Valve: Shading Coil | Copper |
| Valve: Disc-Holder | CA |
| Valve: Shaft Gasket | PA |
| Valve: Function | 4-Way Dual Solenoid |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.80, 1.4, 5.2 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
