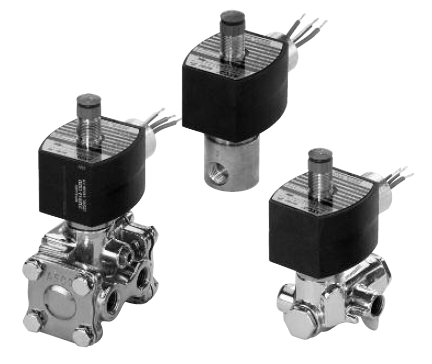

344 Series 1.4 W Low Power, 4-Way, Single Solenoid Valve
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Design eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications.
- Internal AC hum and metallic click at energization are eliminated. Quiet operating.
- Easily handles applications involving rapid cycling or continuous energization
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Design eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications.
- Internal AC hum and metallic click at energization are eliminated. Quiet operating.
- Easily handles applications involving rapid cycling or continuous energization
Specifications
| 8344/8345 Series 1.4 W LP Sol Valve | |
|---|---|
| Product Specifications | [G370] Brass | 1/4" Pipe | 1/4" Orifice | .80 Cv Flow, [G372] Brass | 3/8" Pipe | 3/8" Orifice | 1.4 Cv Flow, [G374] Brass | 1/2" Pipe | 3/8" Orifice | 1.4 Cv Flow, [G376] Brass | 3/4" Pipe | 3/4" Orifice | 5.2 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate |
| Coil Options | None, [MF] Surge Suppression Coils |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Voltage | DC12/DC, DC24/DC |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Media | Air-Inert Gas |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Body Material | Copper Alloy, Aluminum, Stainless Steel |
| Valve: Orifice | 1/4in, 3/8in |
| Valve: Pipe Size | 1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in |
| Valve: Sleeve | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Rider Rings | PTFE |
| Valve: Spring Retainer | POM |
| Valve: Pilot Seat Cartridge | POM |
| Valve: Function | 4-Way Single Solenoid |
| Valve: Core Springs | Stainless Steel |
| Valve: Brand | Asco |
| Valve: Disc Material | NBR |
| Valve: Seal Material | NBR, PUR, CR |
| Valve: Max Temperature °F | 175 |
| Valve: Flow Factor (Cv) | 0.80, 1.4, 5.2 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
