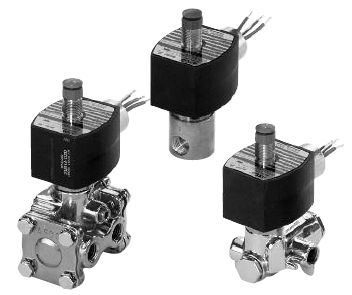

344 Series 0.55 W Low Power, 4-Way, Dual Solenoid Valve
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Molded one-piece solenoid with highly efficient solenoid cartridge and special low wattage coil
- Increased ambient temperature capabilities up to 175°F (80°C)
- Designed for use in automation of plant control systems to provide:
- PLC compatibility
- Reduced battery drain
- Reduced heat rise
- Reduced wiring cost
- Wide selection includes 2/2 normally closed, 3/2 normally closed (including Quick Exhaust), 3/2 universal, 4/2, 5/2, & 5/3
- Air or inert gas only
- Lower-cost alternative to intrinsically safe valves in critical applications not requiring a safety barrier
The ASCO Series 344, also known as 8344, 4-way solenoid valves
incorporate a piston-operated poppet design for high flow in a variety
of applications. Their sturdy, robust construction can be used with air
or water media. The 344 Series is suitable for use in analytical and
diagnostic instruments, biofuels, heating equipment, life science
production, and refining.
Features
- Molded one-piece solenoid with highly efficient solenoid cartridge and special low wattage coil
- Increased ambient temperature capabilities up to 175°F (80°C)
- Designed for use in automation of plant control systems to provide:
- PLC compatibility
- Reduced battery drain
- Reduced heat rise
- Reduced wiring cost
- Wide selection includes 2/2 normally closed, 3/2 normally closed (including Quick Exhaust), 3/2 universal, 4/2, 5/2, & 5/3
- Air or inert gas only
- Lower-cost alternative to intrinsically safe valves in critical applications not requiring a safety barrier
Specifications
| 8344 Series Low Power Dual Sol Valve | |
|---|---|
| Product Specifications | [H344] Brass | 1/4" Pipe | 1/4" Orifice | .80 Cv Flow, [H380] Brass | 3/8" Pipe | 3/8" Orifice | 1.5 Cv Flow, [H382] Brass | 1/2" Pipe | 3/8" Orifice | 1.5 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit |
| Coil Options | None, [HT] Class H - High Temperature, [MF] Surge Suppression Coils |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Media | Air-Inert Gas |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Body Material | Copper Alloy, Aluminum, Stainless Steel |
| Valve: Orifice | 1/4in, 3/8in, 3/4in |
| Valve: Pipe Size | 1 in, 3/8 in, 1/2 in, 1/4 in, 3/4 in |
| Valve: Rider Rings | PTFE |
| Valve: Sleeve | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Pilot Seat Cartridge | POM |
| Valve: Spring Retainer | POM |
| Valve: Function | 4-Way Dual Solenoid |
| Valve: Brand | Asco |
| Valve: Seal Material | NBR, PUR |
| Valve: Disc Material | NBR |
| Valve: Max Temperature °F | 149 |
| Valve: Flow Factor (Cv) | 1.5 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
