Description
Features:

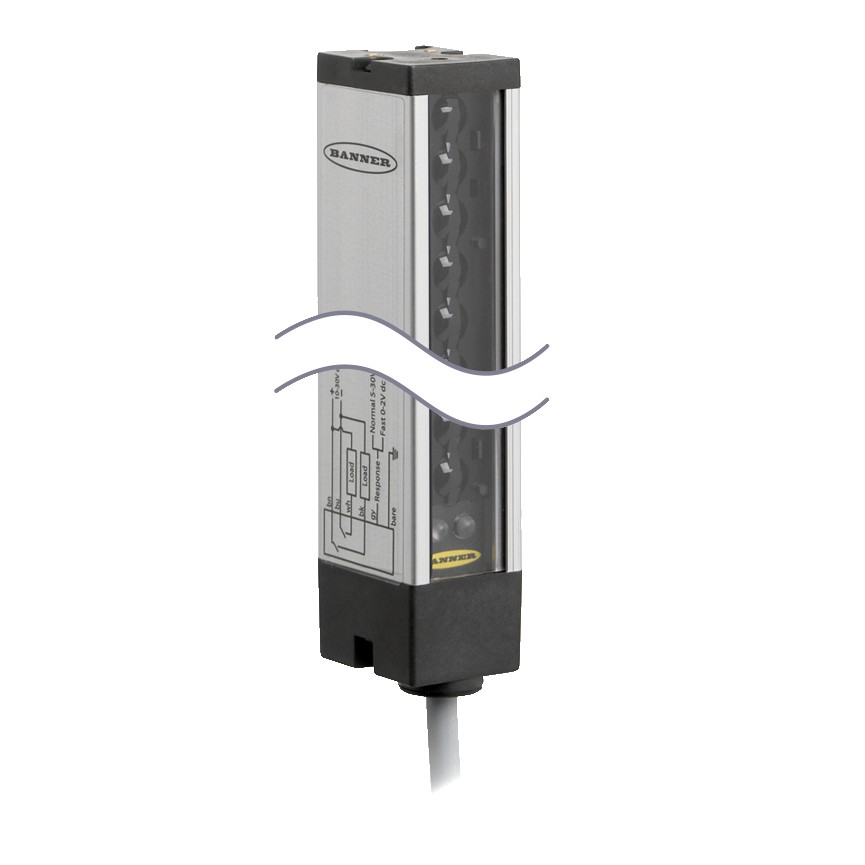

- LX Series: Receiver
- Short Range
- Range: Normal 75 to 200 mm
- Input 10-30 V dc
- Output: Bipolar: 1 NPN
- 1 PNP
- sensing area 599 mm
- Quick-Disconnect Connector
- Min Operating Temperature: -20 °C
- Max Operating Temperature: 70 °C
- Lens Material: Acrylic
- Power Supply: 10-30 VDC
- Ingress Protection: IP65
- Housing Style: Array
- Max Sensing Distance: 200 mm
- Sensing Mode (Detailed): Receiver
- Max Relative Humidity: 90% @ 50 °C
- Housing Material_: Aluminum
- Feature: Quick Disconnect: Yes
- Quick Disconnect Type: M12
- Output: Bipolar (NPN & PNP)
- Number of Pins: 5
- Output Response Time: 6.4 ms ON/11.5 ms OFF
- Operation: Dark Operate
- Feature: Remote Teach: No
- Min Object Detection: 5.6 mm
- Connection Type: Pigtail QD
- Cord/Cable Length: 0.15 m
- Indicator Type: LED
- Slot Depth/Array Length (mm): 599 mm
- Slot Overall Depth (mm): 25.4 mm
