  3. OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 20-30 V ac or dc; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 150 mm (6 in) 5-pin M12 PVC Pigtail QD (OTBVR81QD)
Public Pricelist (v2)

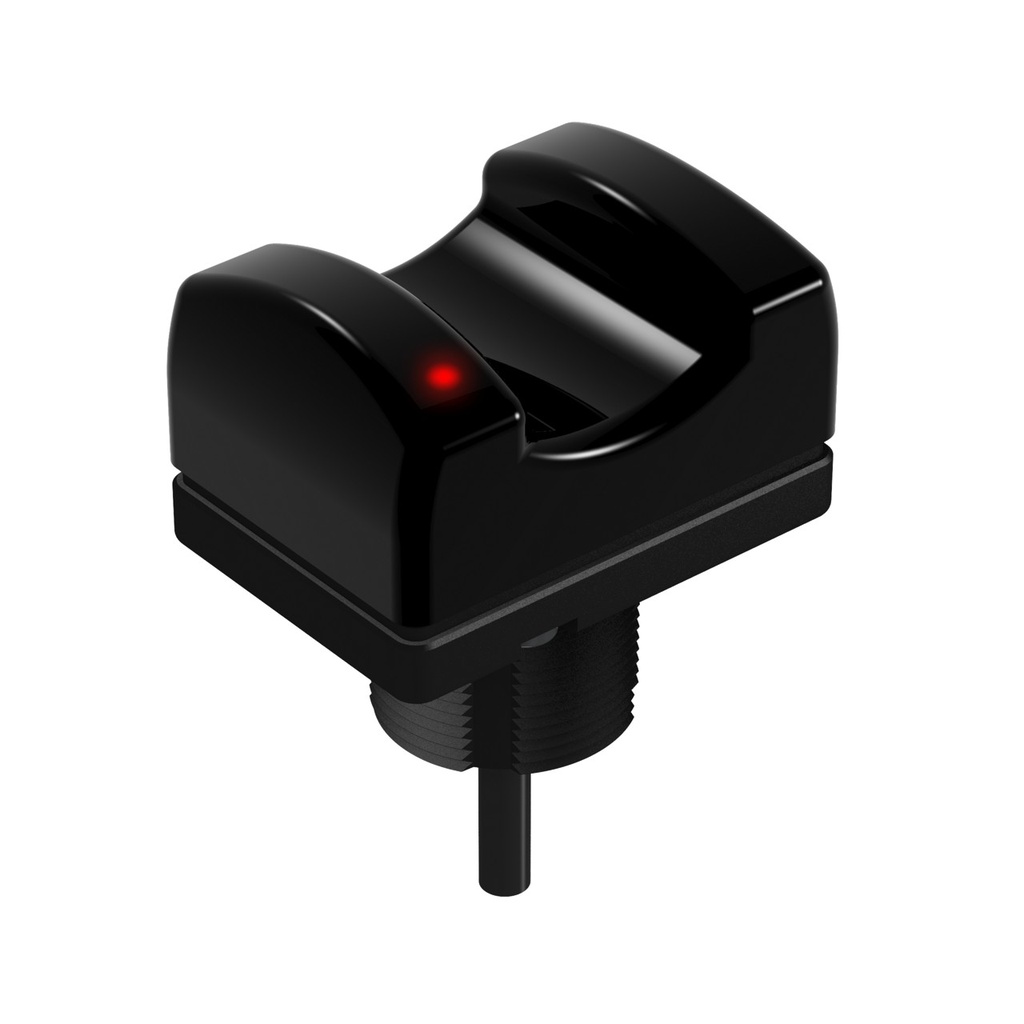

Representative photo. Please check item description for details.

OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 20-30 V ac or dc; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 150 mm (6 in) 5-pin M12 PVC Pigtail QD (OTBVR81QD)

https://www.branom.com/web/image/product.template/554287/image_1920?unique=c26756c
(0 review)

Features:

  • OTB Series: Momentary Action Touch Button w/Black F.C.
  • Input: 20-30V ac or dc
  • Upper Housing: Polysulfone
  • Output: E/M Relay (SPDT)
  • Euro 5-pin 150 mm (6 in) PVC Pigtail Connector
    • Valve: Actuation: Yes
  • Power: AC or DC
  • Feature: Display: No
  • Feature: Display Lighting: No
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 50 °C
  • Power Source: VDC or VAC
  • Ingress Protection: IP66
  • Housing Style: Base Mount - Saddle
  • Sensing Mode (General): Single Point Optical
  • Max Relative Humidity: 90% @ 50 °C (NC)
  • Number of Beams: 1
  • Housing Material_: Thermoplastic Polysulfone
  • Feature: Hazardous Area: No
  • Feature: IO Link: No
  • Feature: Modbus RTU: No
  • Physical Dimensions: 59.9 x 43.2 x 48.0 mm
  • Feature: Wireless: No
  • Supply Voltage: 20-30 VDC/ac
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Housing Color: Black
  • Quick Disconnect Type: M12
  • Number of Input Pins/Conductors: 5
  • Input Type: AC
  • Max Op. Relative NC Humidity: 90% @ 50 °C
  • Feature: Pro-Editor Compatible (Discrete): No
  • Mounting Thread: M30 x 1.5
  • Max Input Response Time (ms): 100 ms
  • Feature: Chemical Resistant: No
  • Secondary Material: Thermoplastic
  • Operation: Normally Open/Normally Closed
  • Feature: Non-Illuminated: Yes
  • Button Operation: Momentary
  • Activation Function: Optical
  • Max Output Response Time: 100 ms
  • Field Cover Color: Black
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/3/4/4X/12/13
  • Feature: Actuation: Yes

$ 170.00 170.0 USD $ 170.00

$ 170.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share
