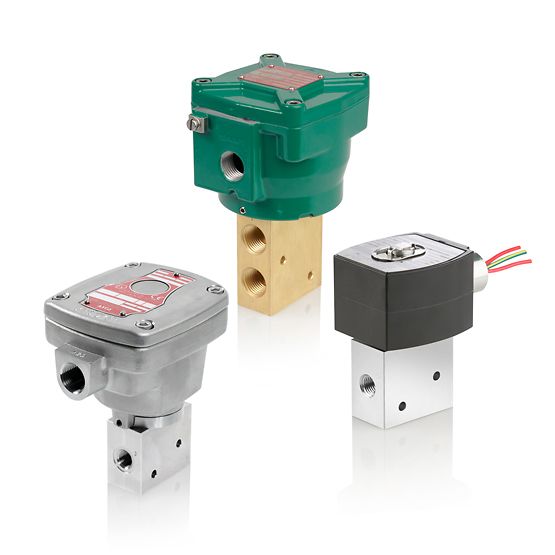

327 Series 1/4" 3-Way High-Flow Direct Acting Solenoid Valve
The ASCO Series 327, also known as 8327, is a line of 3/2-way direct-acting solenoid valves requiring zero minimum operating pressure. Its balanced poppet construction permits high flows at minimum power levels, making it ideal for power plants, refineries, and chemical processing facilities. The valve’s PTFE rider rings and graphite-filled seals reduce friction and eliminate sticking to provide exceptional service life. The 3/2-way direact-acting solenoid valves are ideal for process valve piloting applications.
Features
- Designed for high flow piloting with no minimum operating pressure required; e.g. power plants, refineries, chemical processing
- Balanced Poppet construction for high flow at minimum power levels
- PTFE rider rings and graphite-filled seals reduce friction and eliminate sticking to provide exceptional service life
- 316 Stainless Steel construction for highly corrosive atmospheres
- Available with manual reset (See Special Service Section)
- Low power construction available for applications with power limitations
- NAMUR construction available
The ASCO Series 327, also known as 8327, is a line of 3/2-way direct-acting solenoid valves requiring zero minimum operating pressure. Its balanced poppet construction permits high flows at minimum power levels, making it ideal for power plants, refineries, and chemical processing facilities. The valve’s PTFE rider rings and graphite-filled seals reduce friction and eliminate sticking to provide exceptional service life. The 3/2-way direact-acting solenoid valves are ideal for process valve piloting applications.
Features
- Designed for high flow piloting with no minimum operating pressure required; e.g. power plants, refineries, chemical processing
- Balanced Poppet construction for high flow at minimum power levels
- PTFE rider rings and graphite-filled seals reduce friction and eliminate sticking to provide exceptional service life
- 316 Stainless Steel construction for highly corrosive atmospheres
- Available with manual reset (See Special Service Section)
- Low power construction available for applications with power limitations
- NAMUR construction available
Specifications
| 8327 Series 3-Way High Flow Direct Valve | |
|---|---|
| Product Specifications | [G041] Universal | Brass, [G042] Universal | Stainless Steel, [G051] Universal Low-Temp | Brass, [G052] Universal Low-Temp | Brass, [H311] Universal Low-Power | Brass, [H301] Universal Low-Power | Brass, [H312] Universal Low-Power | Brass, [H302] Universal Low-Power | Brass, [H305] Universal Low-Power Namur | Brass |
| Solenoid Option | None, [EF] Explosionproof (G041, G0042, G051, G052), [EF] Explosionproof (H311, H301, H312, H302, H305), [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, [J] Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H311, H301, H302), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [HT] Class H - High Temperature (G042), [HT] Class H - High Temperature (G052, H301, H302, H305), [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [MF] Surge Suppression Coils, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene), [N] Oxygen, [NV] Oxygen / FKM, [V] FKM |
| Optional Manual Operator | Without, [MS] Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Enclosure Type | Explosionproof & Watertight, Explosionproof & Watertight, Standard |
| Valve: Flow Factor (Cv) | 0.49, 0.56 |
| Valve: Max Temperature °F | 150, 131 |
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 1/4in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Stem | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: O-Ring Holder | Stainless Steel |
| Valve: Springs | Stainless Steel |
| Valve: Rider Rings | PTFE |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 3-Way Universal |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR, FKM, VMQ, FVMQ, PTFE |
| Valve: Disc Material | NBR, FKM, VMQ, FVMQ, PTFE |
| Valve: Min Temperature °F | -4, -40 |
