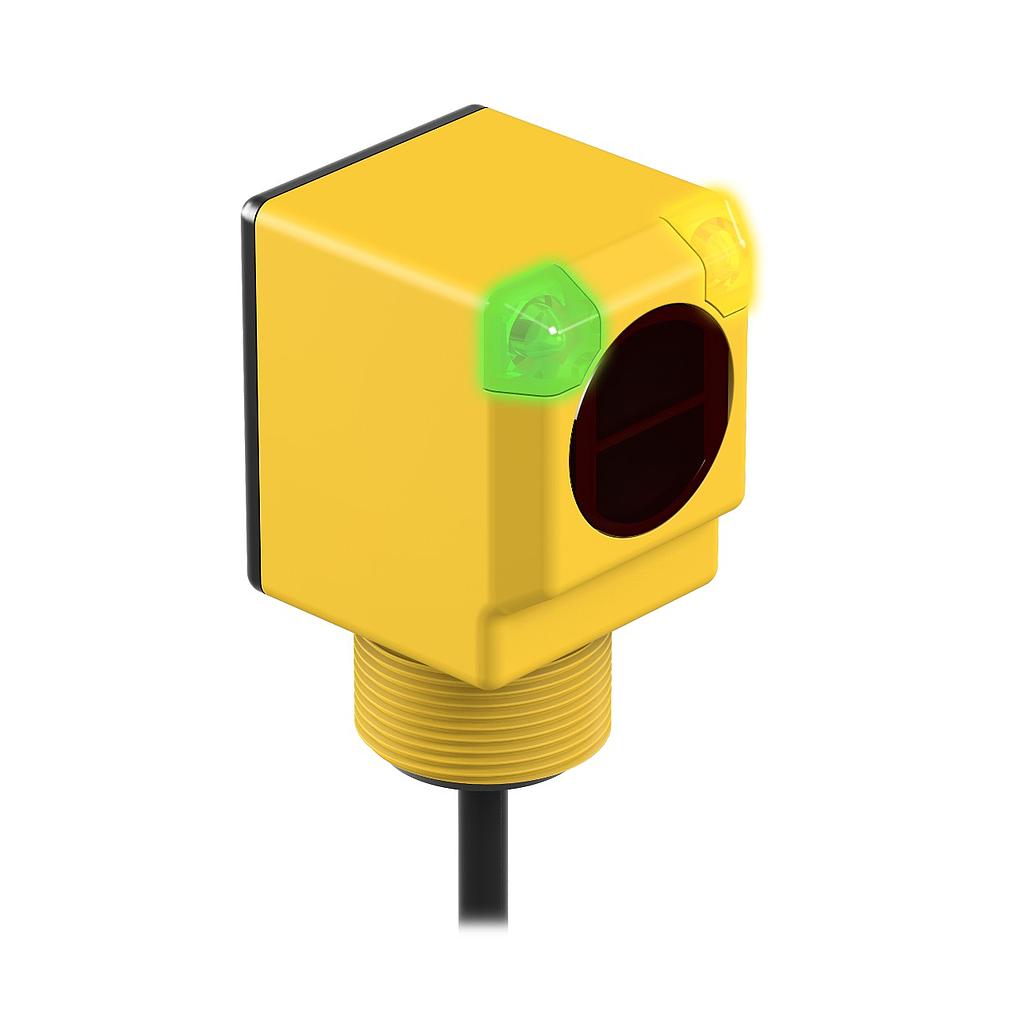

Q40AW3FF600 60m Range Harsh Environment Sensor
Representative photo. Please check item description for details.

Q40AW3FF600 60m Range Harsh Environment Sensor

https://www.branom.com/web/image/product.template/20392/image_1920?unique=c26756c
(0 review)

Features:

    EZ-BEAM Q40 Series: Fixed Field; Range: 600 mm; Input: 20-250V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) cable
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Polycarbonate
  • Case Material: Thermoplastic
  • Power Supply: 20-250 VAC
  • Delay at Power-Up: 100 ms
  • Input Voltage: 20-250 VAC
  • Ingress Protection: IP67
  • Repeatability (µs): 4000
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 600 mm
  • Sensing Mode (Detailed): Background Suppression (Fixed)
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: No
  • Feature: Audible: No
  • Feature: Chemical Resistant: No
  • Feature: Ecolab Certified: Yes
  • Feature: Water Detection: No
  • Number of Pins: 3
  • Output Response Time: 16 ms
  • Operation: Light Operate
  • Adjustments: N/A
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 30 mm
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Cable
  • Sensing Mode: Background Suppression (Fixed)
  • NEMA / UL: NEMA 6P
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 202.00 202.0 USD $ 202.00

$ 202.00

Not Available For Sale
