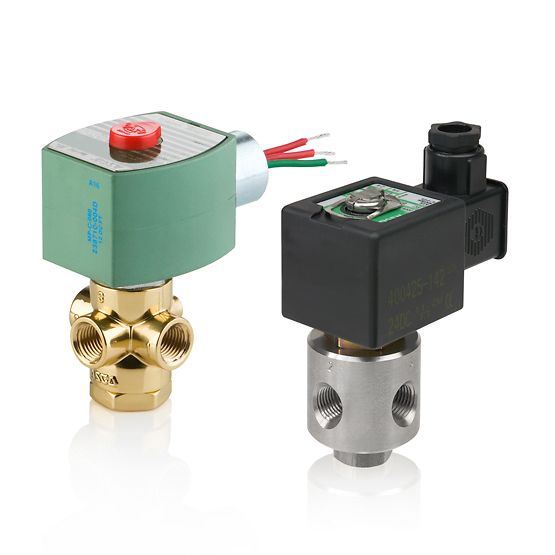

320 Series 1/8" Universal 3-Way Solenoid Valve
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum Operating Pressure Differential required
- Broadest range of applications
- Mountable in any position
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum Operating Pressure Differential required
- Broadest range of applications
- Mountable in any position
Specifications
| 8320 Series 1/8" U Solenoid Valve | |
|---|---|
| Product Specifications | [G212] Brass | 1/16" Orifice | 0.09 Cv Flow, [G003] Brass | 1/8" Orifice | 0.21 Cv Flow |
| Solenoid Option | None, [GP] Panel Mount Type 1 General Purpose Solenoid, [EF] Explosionproof (G212), [J] Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G212), [JP] Panel Mount Junction Box, [OF] Open Frame Spade and Screw Terminal Solenoids, [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [KP] Class F - Intermediate Power - Screw Terminals, [SD] Class F - Intermediate Power - DIN Connection, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [SV] Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Manual Operator | Without, [MS] Screw Type Manual Operator |
| Voltage | AC 24/60, AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 24, DC 120, DC 240 |
| Optional Seat/Disc/Etc. Material | None |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/8 in |
| Valve: Body Material | Copper Alloy |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | CA |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Orifice | 1/16in, 1/8in |
| Valve: Media | Water, Light Oil, Air-Inert Gas |
| Valve: Core Springs | Stainless Steel |
| Valve: Core Guide | CA |
| Valve: Function | 3-Way Universal |
| Valve: Brand | Asco |
| Valve: Seal Material | NBR, Cast UR |
| Valve: Disc Material | NBR, Cast UR |
| Valve: Mounting Position | Any |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.09, 0.21 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
