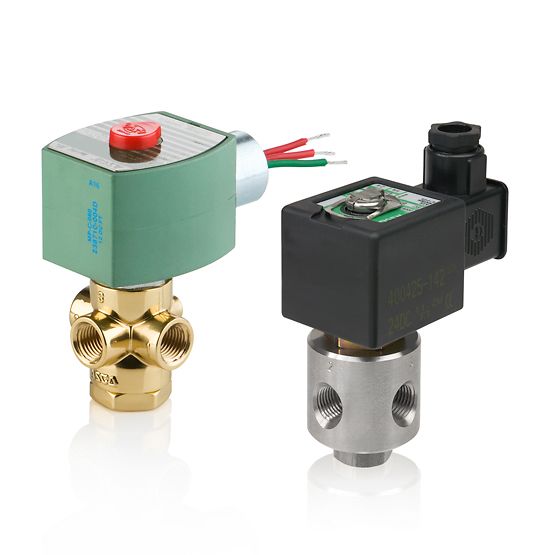

Representative photo. Please check item description for details.
320 Series 1/4" 3-Way Direct Mount Solenoid Valve
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum operating pressure differential required
- Available in brass and stainless-steel constructions
- Mountable in any position
- Long-life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications. Easily handles rapid cycling or continuous energization
- Harsh-environment model offers low power consumption plus quick shutdown of valves and actuators. Valves are UL, CSA, ATEX, and IIECEx certified
- RedHat Next-Generation model offers voltage-ranging with low-power operation. Valves have Class I, Division 2 coils
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- All NPT connections are in the valve body to allow in-line piping
- No minimum operating pressure differential required
- Available in brass and stainless-steel constructions
- Mountable in any position
- Long-life version eliminates metal-to-metal contact to extend life up to 20 million cycles in dry air or gas applications. Easily handles rapid cycling or continuous energization
- Harsh-environment model offers low power consumption plus quick shutdown of valves and actuators. Valves are UL, CSA, ATEX, and IIECEx certified
- RedHat Next-Generation model offers voltage-ranging with low-power operation. Valves have Class I, Division 2 coils
Specifications
| 8320 Series NC Direct Mount Sol Valve | |
|---|---|
| Product Specifications | [G701] Brass | 1/16" Orifice | .09 Cv Flow, [G702] Brass | 3/32" Orifice | .12 Cv Flow, [G703] Brass | 1/16" Orifice | .09 Cv Flow, [G704] Brass | 3/32" Orifice | .12 Cv Flow, [G705] Brass | 1/8" Orifice | .21 Cv Flow, [G711] Stainless Steel | 1/16" Orifice | .09 Cv Flow, [G712] Stainless Steel | 3/32" Orifice | .12 Cv Flow, [G713] Stainless Steel | 1/16" Orifice | .09 Cv Flow, [G714] Stainless Steel | 3/32" Orifice | .12 Cv Flow, [G715] Stainless Steel | 1/8" Orifice | .21 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EF] Explosionproof (G703, G704, G714), [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [HT] Class H - High Temperature, [KB] Class H - Intermediate Power - Screw Terminals, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [KP] Class F - Intermediate Power - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection, [ZT] Class F - High Temperature - Mini 3 Pin Connector |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [V] FKM |
| Optional Manual Operator | Without, [MO] Manual Operator, [MS] Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 3-Way Normally Closed |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Disc-Holder | CA |
| Valve: Core Guide | CA |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Media | Air-Inert Gas |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Min Temperature °F | 0 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 0.09, 0.12, 0.21 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
