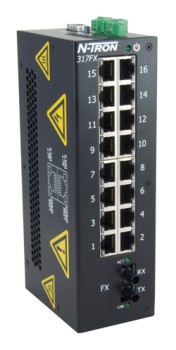

300 Series, 17-Port, N-Tron 317FX Unmanaged Industrial Ethernet Switch, ST 15km
Red Lion's N-Tron® series 300 unmanaged Ethernet switches offer high reliability and up to 17 ports of connectivity. The 300 line offers excellent EMI protection and hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network. These switches are also optionally available with N-View™ monitoring technology, which can be found in our Monitored family of products.
Features
- 17 Port Industrial Ethernet Switch
- 16 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 15km Fiber Port with ST Connectors
- IEEE 802.3 Compliance
- -40°C to 85°C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Redundant Power Inputs (10-30VDC)
- Rugged Industrial DIN-Rail Enclosure
Red Lion's N-Tron® series 300 unmanaged Ethernet switches offer high reliability and up to 17 ports of connectivity. The 300 line offers excellent EMI protection and hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network. These switches are also optionally available with N-View™ monitoring technology, which can be found in our Monitored family of products.
Features
- 17 Port Industrial Ethernet Switch
- 16 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 15km Fiber Port with ST Connectors
- IEEE 802.3 Compliance
- -40°C to 85°C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Redundant Power Inputs (10-30VDC)
- Rugged Industrial DIN-Rail Enclosure
Specifications
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP20 |
| Fiber Type | Singlemode |
| Ethernet Connector Type | ST |
| No. Ports | 17 |
| 10/100 Ports | 16 |
| 100 Fiber Ports | 1 |
| Distance Rating | 15 km |
