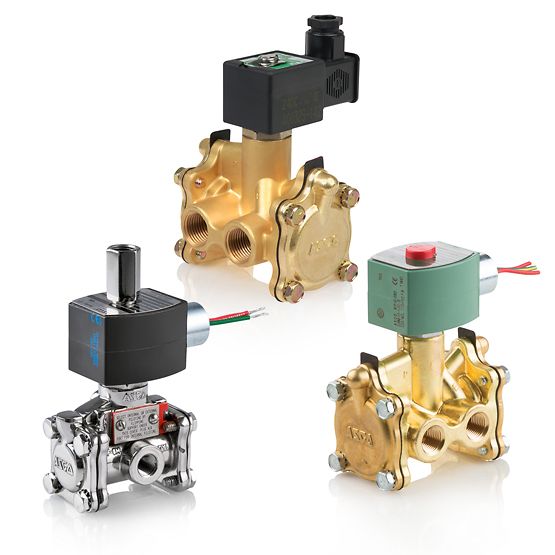

316 Series 3/8" NC, 3-Way Solenoid Valve
The ASCO Series 316, also known as 8316, is a line of high-flow, 3-way
solenoid valves, which can be used to pilot large actuators and provide
quick closing of large control valves. The diaphragm poppet design is
suitable for controlling air, inert gas and liquids. Its resilient
seating achieves tight shutoff.
Features
- Diaphragm poppet valves suitable for controlling air, inert gas, and liquids
- Internal piloting controls large orifices to provide high flows
- Can be used to pilot large actuators to provide quick closing of large control valves
- Resilient seating for tight shutoff
- Mountable in any position
The ASCO Series 316, also known as 8316, is a line of high-flow, 3-way
solenoid valves, which can be used to pilot large actuators and provide
quick closing of large control valves. The diaphragm poppet design is
suitable for controlling air, inert gas and liquids. Its resilient
seating achieves tight shutoff.
Features
- Diaphragm poppet valves suitable for controlling air, inert gas, and liquids
- Internal piloting controls large orifices to provide high flows
- Can be used to pilot large actuators to provide quick closing of large control valves
- Resilient seating for tight shutoff
- Mountable in any position
Specifications
| 8316 Series 3/8" NC Solenoid Valve | |
|---|---|
| Product Specifications | [G054] Brass | 5/8" Orifice | 2.1 Cv Flow, [G014] Brass | 5/8" Orifice | 2.1 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof (G054), [EF] Explosionproof (G014), [EV] Class I, Division 1 Explosionproof w/316 SS Hub and SS Base Plate, [GP] Panel Mount Type 1 General Purpose Solenoid, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G054), [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (G014), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G054), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (G014), [JP] Panel Mount Junction Box, [OF] Open Frame Spade and Screw Terminal Solenoids, [OP] Panel Mount Spade, Screw and DIN Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KB] Class H - Intermediate Power - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [KP] Class F - Intermediate Power - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SD] Class F - Intermediate Power - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [SP] Class F - Intermediate Power - Spade Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection, [SV] Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene), [J] CR (Chloroprene, Neoprene), [N] Oxygen, [Q] Long-Life Construction, [V] FKM |
| Optional Mounting Bracket | Without, [MB] Mounting Bracket |
| Optional Manual Operator | Without, [MO] Manual Operator |
| Voltage | AC 24/60, AC 110/50, AC 120/60, AC 120/60 (110/50), AC 220/50, AC 240/60, AC 240/60 (220/50), DC 6, DC 12, DC 24, DC 120, DC 240 |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Pilot Operated |
| Valve: Media | Water, Air-Inert Gas |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Body Material | Copper Alloy |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Shading Coil | Copper |
| Valve: Orifice | 5/8in |
| Valve: Disc-Holder | CA |
| Valve: Pilot Seat Cartridge | CA |
| Valve: Function | 3-Way Normally Closed |
| Valve: Diaphragm Material | NBR |
| Valve: Brand | Asco |
| Valve: Core Springs | Stainless Steel |
| Valve: Seal Material | NBR |
| Valve: Disc Material | NBR |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 2.5 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
| Valve: Mounting Position | Any |
| Valve: Pipe Size | 3/8 in |
