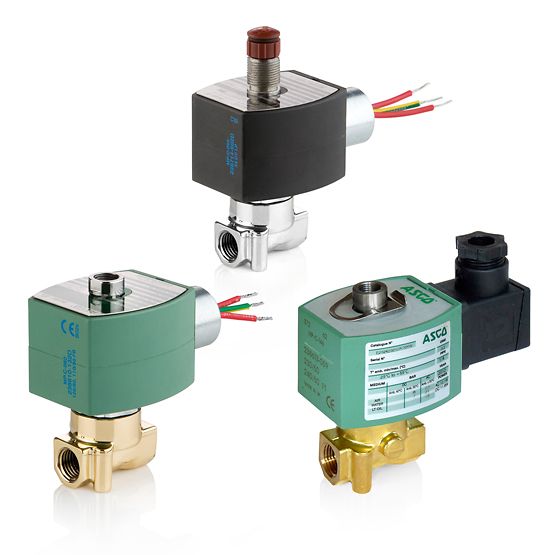

314 Series 1/4" NO Direct-Acting Solenoid Valve
The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.
The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.
Specifications
| 8314 Series NO Gen Svc Sol Valve | |
|---|---|
| Solenoid Option | None, [EF] Explosionproof, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit |
| Lead Length | Standard, 18" [D] |
| Optional Manual Operator | Without, [MS] Screw Type Manual Operator |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Product Specifications | [H053] Brass | 1/4" Pipe | 3/32" Orifice | 0.15 Flow |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/4 in |
| Valve: Orifice | 3/32in |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Core Springs | Stainless Steel |
| Valve: Shading Coil | Copper, Silver |
| Valve: Core Guide | POM |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 3-Way Normally Open |
| Valve: Media | Air-Inert Gas, Water, Light Oil |
| Valve: Brand | Asco |
| Valve: Seal Material | Nitrile |
| Valve: Disc Material | Nitrile (Upper Disk - FKM) |
| Valve: Min Temperature °F | -13 |
| Valve: Max Temperature °F | 131 |
| Valve: Flow Factor (Cv) | 0.15, 0.20 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
