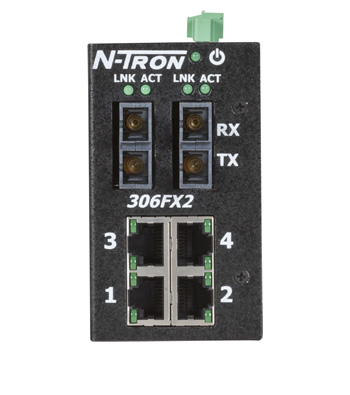

300 Series, 6-Port, N-Tron 306FX2 Unmanaged Industrial Ethernet Switch, SC 15km
Red Lion's N-Tron® series 300 unmanaged Ethernet switches offer high reliability and up to 17 ports of connectivity. The 300 line offers excellent EMI protection and hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network. These switches are also optionally available with N-View™ monitoring technology, which can be found in our Monitored family of products.
Features
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 15km Fiber Ports with SC Connectors
- IEEE 802.3 Compliance
- -40°C to 70°C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Redundant Power Inputs (10-30VDC)
- Rugged Industrial DIN-Rail Enclosure
Red Lion's N-Tron® series 300 unmanaged Ethernet switches offer high reliability and up to 17 ports of connectivity. The 300 line offers excellent EMI protection and hardened metal DIN-rail mountable enclosures to expand your industrial Ethernet network. These switches are also optionally available with N-View™ monitoring technology, which can be found in our Monitored family of products.
Features
- 6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Singlemode 15km Fiber Ports with SC Connectors
- IEEE 802.3 Compliance
- -40°C to 70°C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Redundant Power Inputs (10-30VDC)
- Rugged Industrial DIN-Rail Enclosure
Specifications
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP20 |
| Fiber Type | Singlemode |
| Ethernet Connector Type | SC |
| No. Ports | 6 |
| 10/100 Ports | 4 |
| 100 Fiber Ports | 2 |
| Distance Rating | 15 km |
