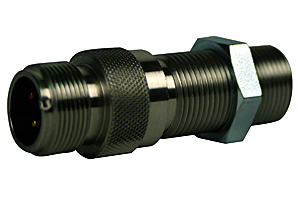

Shimpo Magnetic Sensor, Requires CABLE-3030
Magnetic pick-up with Amphenol connector; requires sensor cable assembly. This general-purpose unit is designed to mount in a 5/8”-18 threaded hole and is provided with a jam nut for sensor securing.
Model 3030AN pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. The output voltage is directly proportional to the change in magnetic flux intensity over the change in time.
Features
- Sine wave output from change in magnetic to non-magnetic
- Change in voltage proportional to magnetic flux intensity over time
- Range of 0.01″ (0.25 mm) typical clearance
- Optional cable for 3030AN (CABLE-3030)
