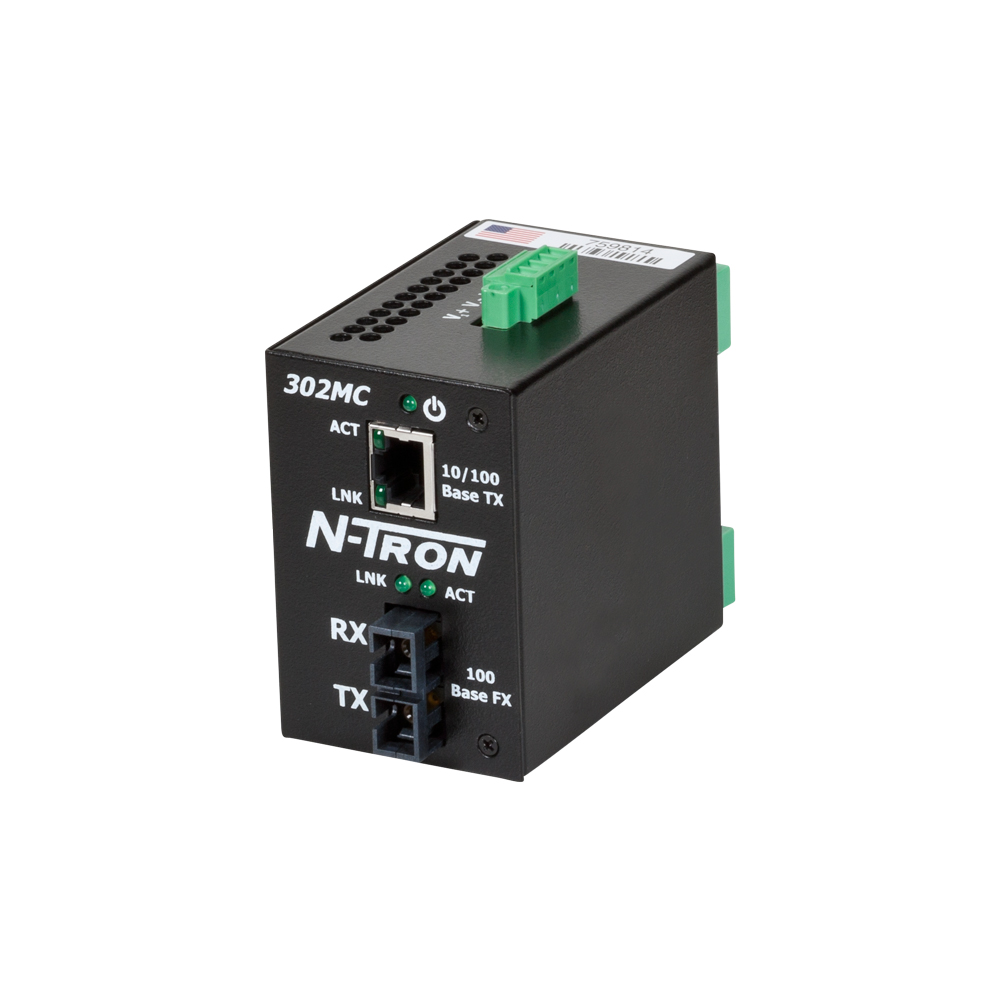

Representative photo. Please check item description for details.
302MC Series, 2-Port, N-Tron 302MC Industrial Media Converter with Monitoring, ST 15km
Red Lion's N-Tron® series 302 media converters offer high reliability and redundant power inputs. With excellent EMI protection and metal DIN-rail mountable housings, discover how our 302 media converters can easily expand your industrial Ethernet network. These media converters are also available with optional N-View™ OPC monitoring technology.
Features
- Unmanaged Operation
- Plug and Play Operation
- 2 Port Industrial Media Converter
- One 10/100BaseTX RJ-45 Port
- One 100BaseFX Singlemode 15km Fiber Port with ST Connectors
- Compact Size, Small Footprint
- Full IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40°C to 70°C Operating Temperature
- Rugged Steel DIN-Rail or Panel Mount Enclosure
- RJ-45 Port Supports Full/Half Duplex Operation
- RJ-45 Port Auto Senses Speed and Flow Control
- MDIX Auto Cable Sensing (RJ-45)
- Redundant Power Inputs (10-30VDC)
- N-View™ Monitoring Technology
Red Lion's N-Tron® series 302 media converters offer high reliability and redundant power inputs. With excellent EMI protection and metal DIN-rail mountable housings, discover how our 302 media converters can easily expand your industrial Ethernet network. These media converters are also available with optional N-View™ OPC monitoring technology.
Features
- Unmanaged Operation
- Plug and Play Operation
- 2 Port Industrial Media Converter
- One 10/100BaseTX RJ-45 Port
- One 100BaseFX Singlemode 15km Fiber Port with ST Connectors
- Compact Size, Small Footprint
- Full IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40°C to 70°C Operating Temperature
- Rugged Steel DIN-Rail or Panel Mount Enclosure
- RJ-45 Port Supports Full/Half Duplex Operation
- RJ-45 Port Auto Senses Speed and Flow Control
- MDIX Auto Cable Sensing (RJ-45)
- Redundant Power Inputs (10-30VDC)
- N-View™ Monitoring Technology
Specifications
| Ethernet: Brand | HMC / Red Lion |
| Ethernet: No. Ports | 2 |
| Ethernet: Ethernet Connector Type | ST |
| Ethernet: Distance Rating | 15 km |
| Ethernet: Mounting Options | DIN Rail |
| Ethernet: Case Material | Metal |
| Ethernet: Fiber Type | Singlemode |
| Ethernet: 10/100 Ports | 1 |
| Ethernet: 100 Fiber Ports | 1 |
