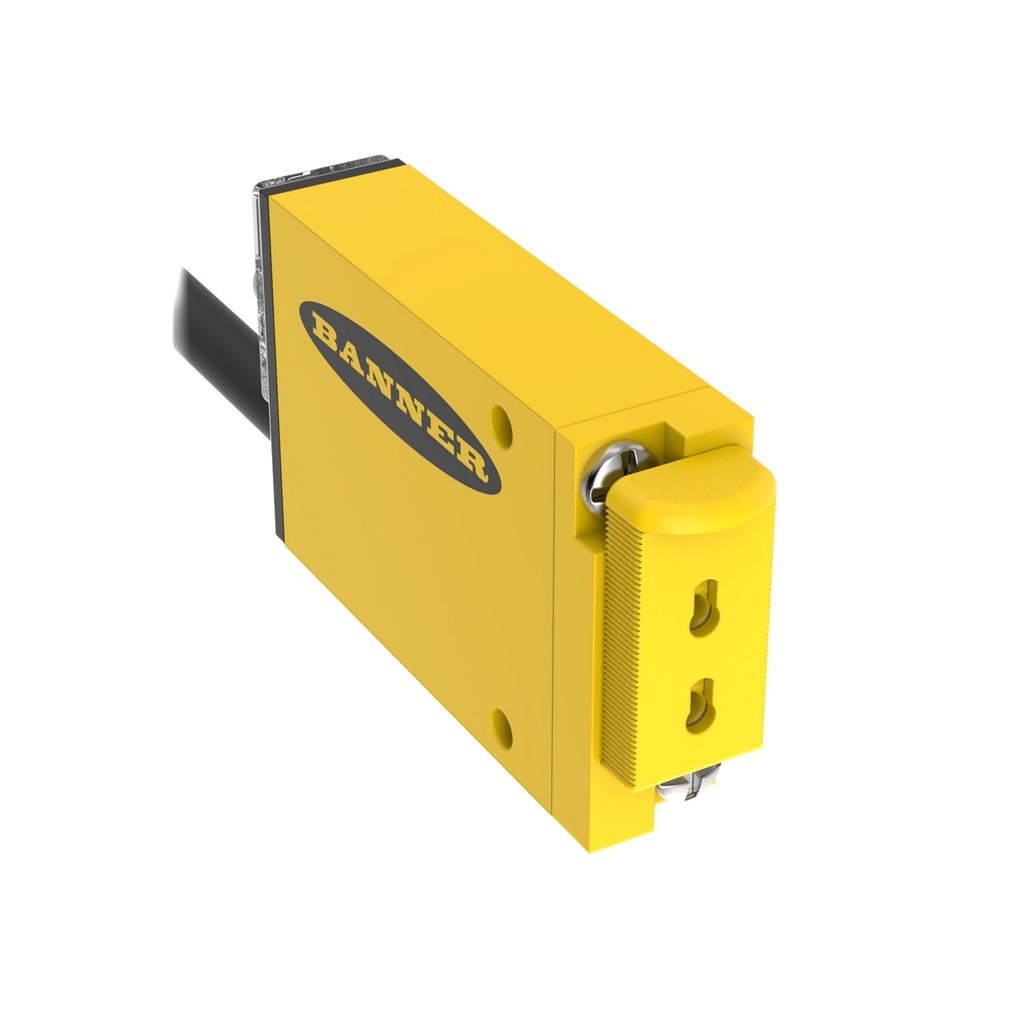

Representative photo. Please check item description for details.

MINI-BEAM: Plastic Fiber Optic (SM2A312FPQDP)

https://www.branom.com/web/image/product.template/18759/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Plastic Fiber Optic
  • Range: depends on fiber used
  • Input: 24-240 V ac
  • Output: SPST Solid-state 2-wire
  • 6 in Pigtail Quick-Disconnect Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Feature: Bussable Power: No
  • Ingress Protection: IP67
  • Repeatability (µs): 1300
  • Housing Style: Rectangular
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Number of Pins: 3
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Input/Output: Discrete
  • Min Response Time: 4 ms
  • Output Type (Specific): Single Discrete
  • Fiber Type: Plastic and Glass
  • Color LED - Amplifiers: Red
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 0.15 m
  • Fiber Termination Type: Unterminated Plastic Fibers or T5 Termination
  • Indicator Type: Indicator LED
