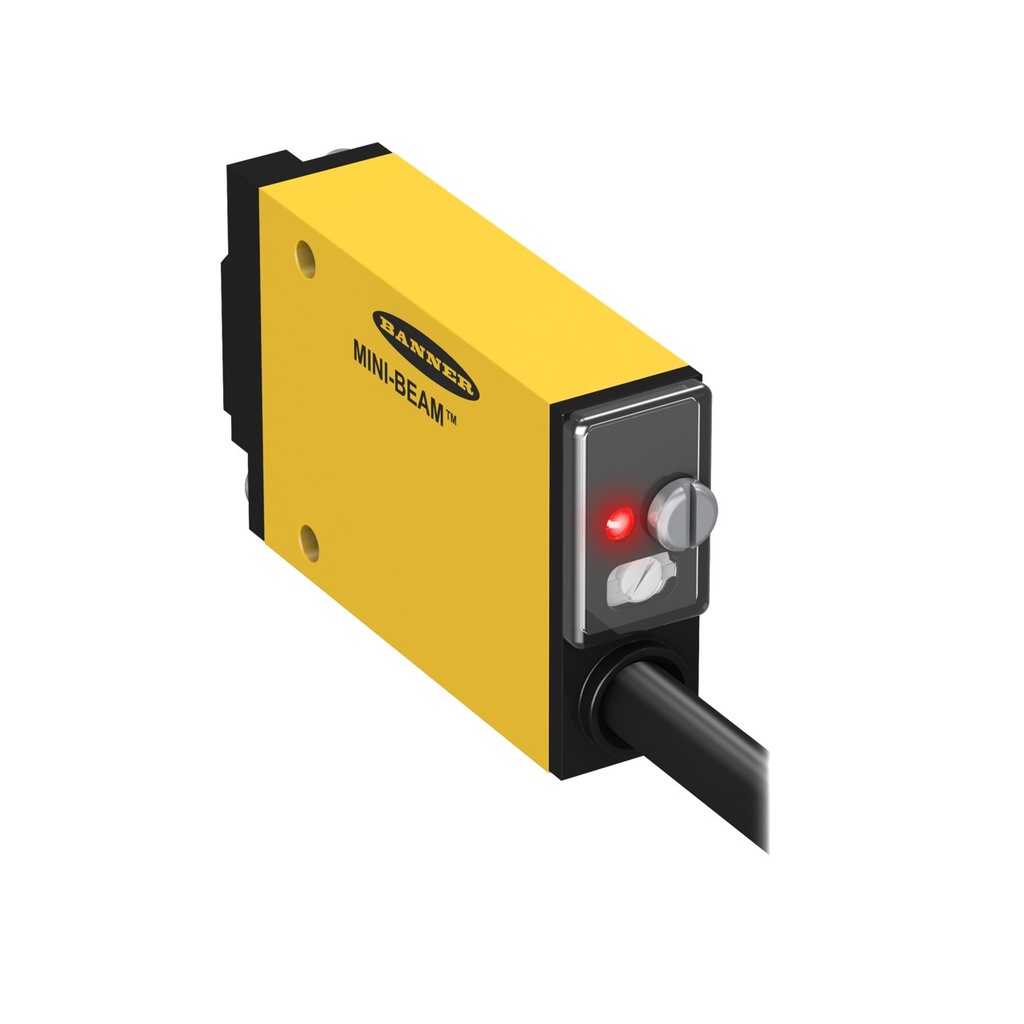

Representative photo. Please check item description for details.

MINI-BEAM: Divergent Diffuse (SM2A312WQDP)

https://www.branom.com/web/image/product.template/18755/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Divergent Diffuse
  • Range: 130 mm
  • Input: 24-240V ac
  • Output: SPDT Solid-state 2-wire
  • 6 in Pigtail QD Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 2600
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 130 mm
  • Sensing Mode (Detailed): Divergent
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Number of Pins: 3
  • Output Response Time: 8 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 213.00 213.0 USD $ 213.00

$ 213.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Share

    Features:

    • MINI-BEAM: Divergent Diffuse
    • Range: 130 mm
    • Input: 24-240V ac
    • Output: SPDT Solid-state 2-wire
    • 6 in Pigtail QD Connector
    • Min Operating Temperature: -20 °C
    • Max Operating Temperature: 70 °C
    • Lens Material: Acrylic
    • Power Supply: 24-240 VAC
    • Delay at Power-Up: 300 ms
    • Ingress Protection: IP67
    • Repeatability (µs): 2600
    • Sensing Beam: Infrared LED
    • Housing Style: Rectangular
    • Max Sensing Distance: 130 mm
    • Sensing Mode (Detailed): Divergent
    • Sensing Mode (General): Proximity
    • Max Relative Humidity: 90% @ 50 °C
    • Housing Material_: Thermoplastic
    • Feature: Quick Disconnect: Yes
    • Feature: Audible: No
    • Quick Disconnect Type: 1/2 in. (Micro)
    • Number of Pins: 3
    • Output Response Time: 8 ms
    • Operation: Light/Dark Operate
    • Adjustments: Potentiometer
    • Feature: Encapsulated: Yes
    • Input/Output: Solid-State AC Switch
    • Connection Type: Pigtail QD
    • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
    • Cord/Cable Length: 0.15 m
    • Indicator Type: LED
