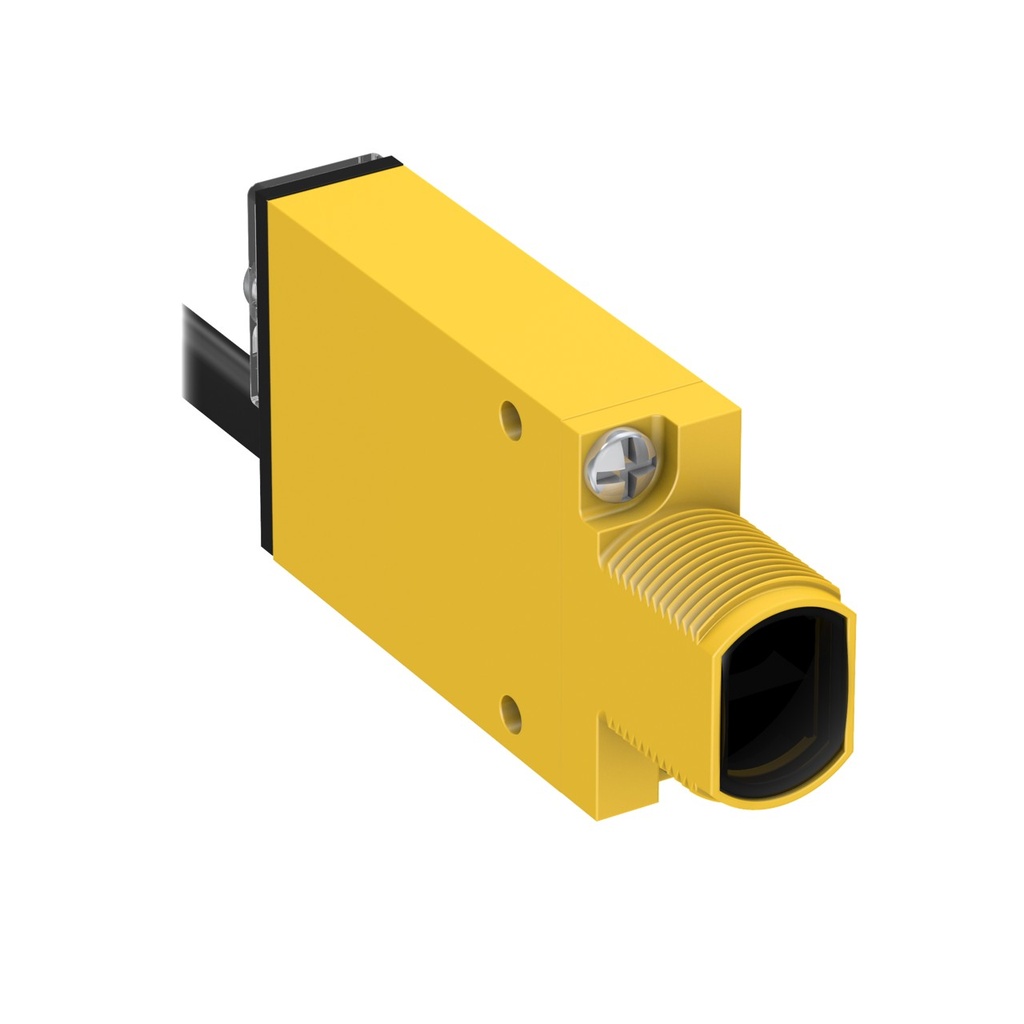

MINI-BEAM: Receiver (SM2A31RQDP)

https://www.branom.com/web/image/product.template/18749/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Receiver
  • Range: 3 m
  • Input: 24-240V ac
  • Output: SPST Solid-state 2-wire
  • 6 in Pigtail QD Connector
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC
  • Delay at Power-Up: 300 ms
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 3000 mm
  • Sensing Mode (Detailed): Receiver
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: 1/2 in. (Micro)
  • Opposed Mode Emitter/Receiver: Receiver
  • Number of Pins: 3
  • Output Response Time: 2 ms ON/1 ms OFF
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Input/Output: Solid-State AC Switch
  • Barrel Diameter: 18 mm
  • Connection Type: Pigtail QD
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 0.15 m
  • Indicator Type: LED

$ 188.00 188.0 USD $ 188.00

$ 188.00

Not Available For Sale
