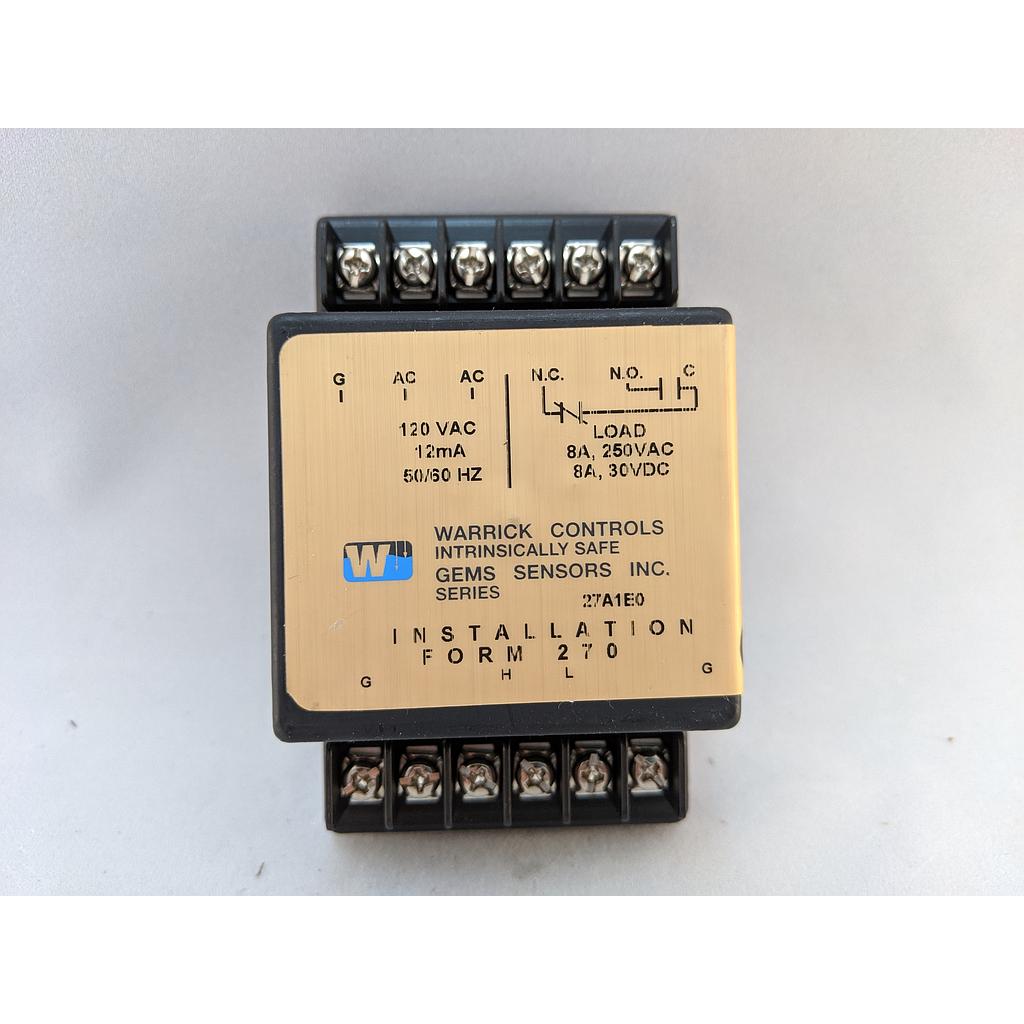

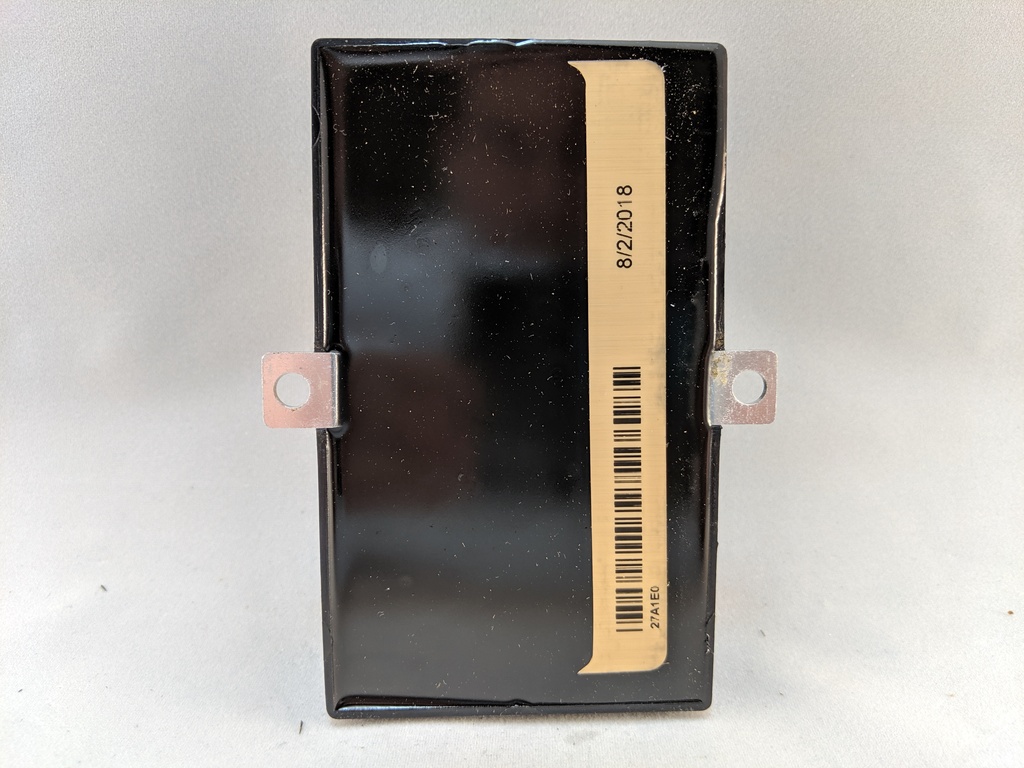

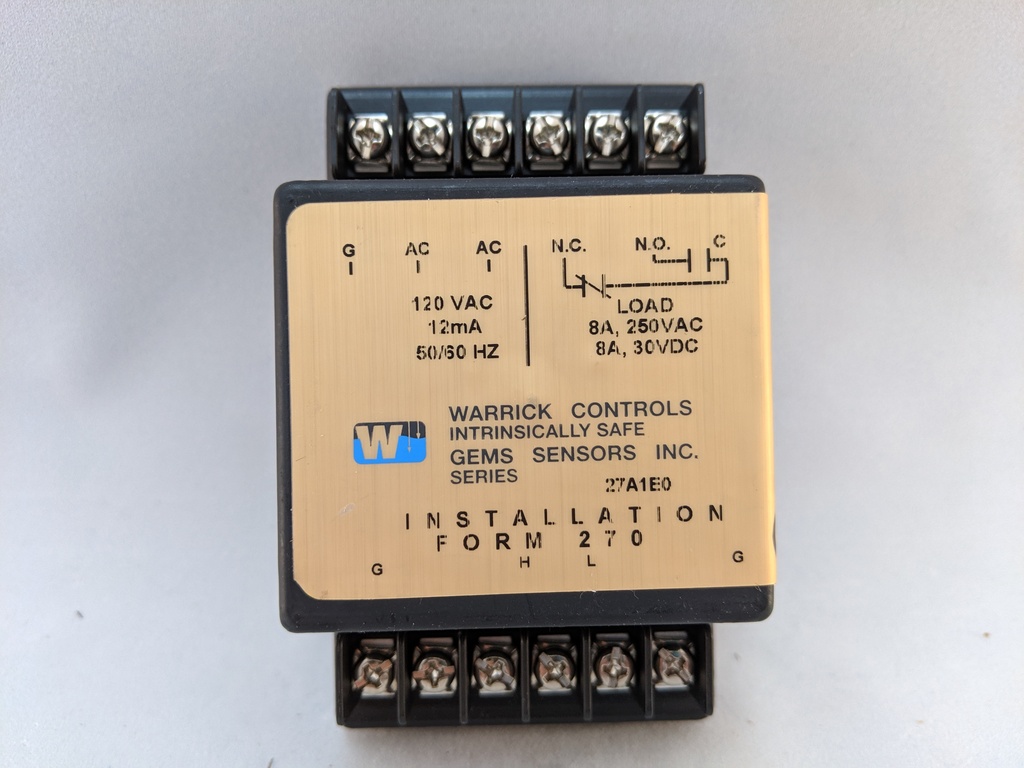

Intrinsically Safe Level Control, 120VAC, 10K Ohm Sensitivity
Series 27 Conductivity Based Liquid Level Controls are intrinsically safe controls with SPDT output contacts and are UL approved for use in Class I, Groups A, B, C & D; Class II, Groups E, F & G; and Class III hazardous locations. Control sensitivity
is factory-set. Series 27 is UL Pilot Duty rated. CSA certified for Class 1, Groups A, B, C and D; Class II, Groups E, F and G; Class III.
Sku: 27A1E0
Model: 27
Sensor Type: Intrinsically Safe Controls
Mode Of Operation: Direct
Sensitivity: 10 K ohms
Control Style: Solid State
Socket Style: N/A
Standoff Style: N/A
Enclosure: N/A
Contact Design: 1 Normally Open & 1 Normally Closed: (form C)
Contact Rating: 8 Amp Resistive
Supply Voltage: 120 VAC
Secondary Voltage: 11 VAC
Terminal Style: Screw Type
Minimum Temperature: -40°F
Maximum Temperature: 150°F
Protection: Intrinsically Safe
Approvals: UL 913
Weight: 1.7
