  3. FS-200 SERIES FLOW SWITCH 1 1/4"NPT PORT.10.0GPM.BRONZE HOUSING
Public Pricelist (v2)
Representative photo. Please check item description for details.

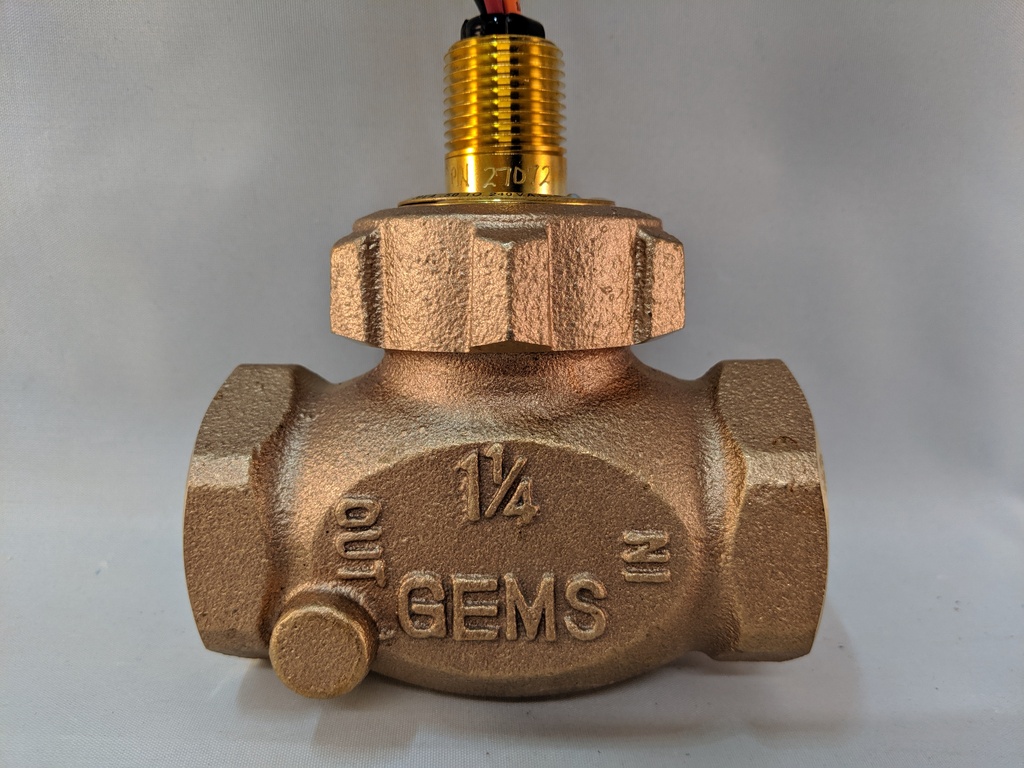

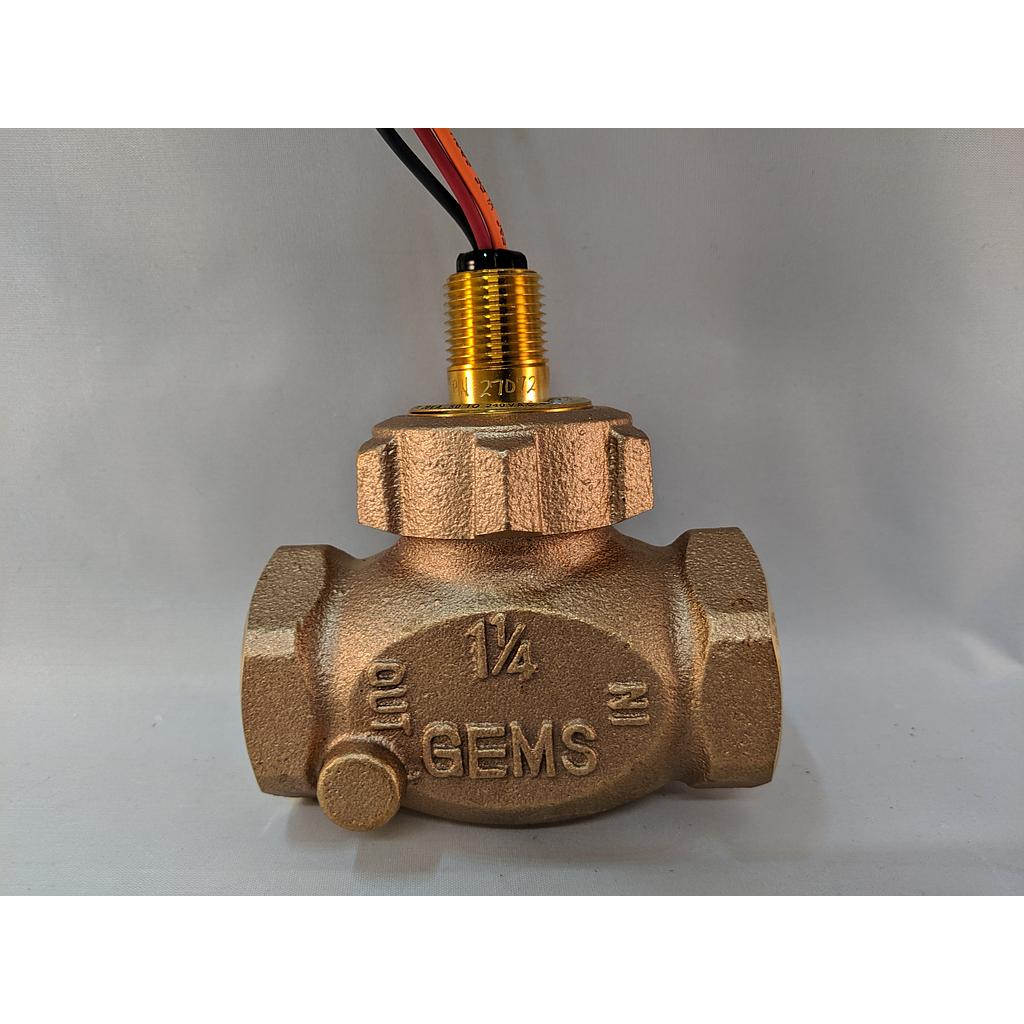

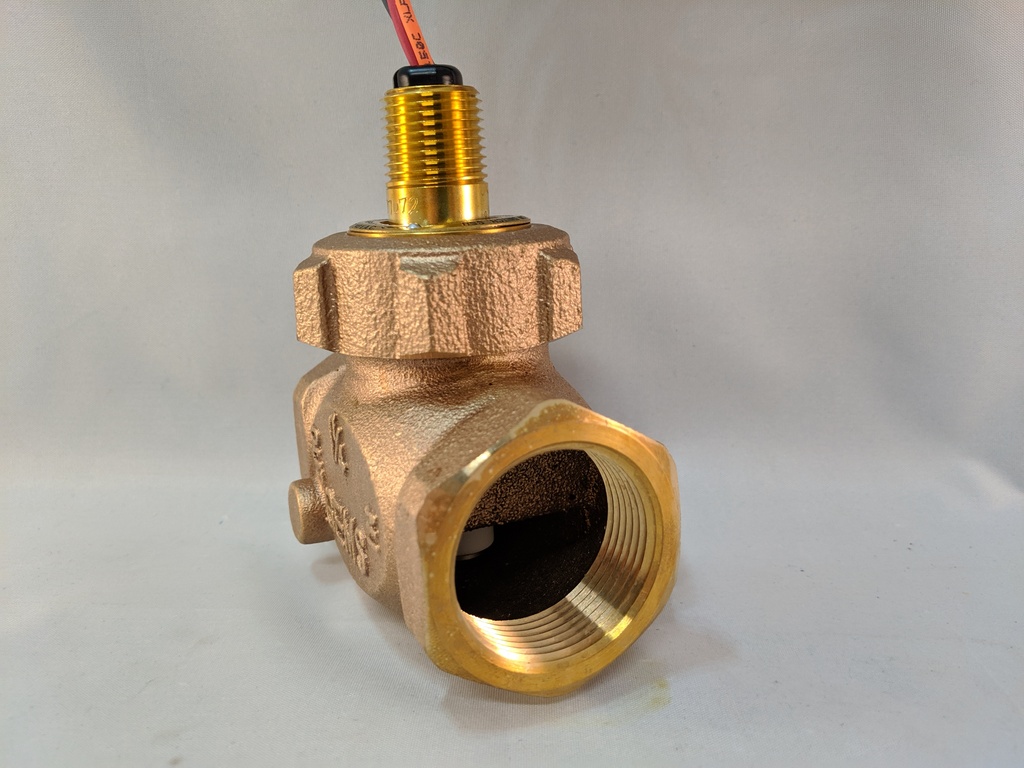

FS-200 SERIES FLOW SWITCH 1 1/4"NPT PORT.10.0GPM.BRONZE HOUSING

https://www.branom.com/web/image/product.template/172597/image_1920?unique=c26756c
(0 review)

FS-200 Series Flow Switches offer accurate flow detection, with 1% repeatability, over a broad range of flow settings and port sizes. Its durable construction delivers long-life reliability in either water or oil. Generous flow paths keep pressure drop

low. These switches are ideal for detection of improper flow rates in high volume lubrication, cooling or process systems. Applications include: Protect Bearings or Gears (oil separators, fuel systems, pumps, compressors, presses), Electronics or

Machinery (heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters), Process Systems (water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators).

  • Sku: 27072
  • Sensor Type: Shuttle Type
  • Model: FS-200
  • Primary Material Of Construction: Alloy
  • Body Material: Bronze
  • Wetted Materials: Bronze, Teflon®,316 Stainless Steel, Viton, Ceramic
  • Minimum Pressure: 300
  • 500 psi
  • Maximum Pressure: 400 psi
  • Minimum Temperature: -20°F
  • Maximum Temperature: 300°F
  • Flow Setting: 10 GPM
  • Flow Setting Range: 5.01-10.0 GPM
  • Adjustable Range: N/A
  • Set Point Accuracy: ±10%
  • Set Point Differential: 15%
  • Switch Type: SPDT (20 VA)
  • Port Size: 1-1/4" NPT Female
  • Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
  • Recommended Filtration: 150 micron
  • Approvals: UL Recognized, UL Explosion Proof, CE, CSA, FM
  • Weight: 3.875

    • Measurement Maximum
    • Process Connection Type
    • Measurement Minimum

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1

    Share

    FS-200 Series Flow Switches offer accurate flow detection, with 1% repeatability, over a broad range of flow settings and port sizes. Its durable construction delivers long-life reliability in either water or oil. Generous flow paths keep pressure drop

    low. These switches are ideal for detection of improper flow rates in high volume lubrication, cooling or process systems. Applications include: Protect Bearings or Gears (oil separators, fuel systems, pumps, compressors, presses), Electronics or

    Machinery (heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters), Process Systems (water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators).

  • Sku: 27072
  • Sensor Type: Shuttle Type
  • Model: FS-200
  • Primary Material Of Construction: Alloy
  • Body Material: Bronze
  • Wetted Materials: Bronze, Teflon®,316 Stainless Steel, Viton, Ceramic
  • Minimum Pressure: 300
  • 500 psi
  • Maximum Pressure: 400 psi
  • Minimum Temperature: -20°F
  • Maximum Temperature: 300°F
  • Flow Setting: 10 GPM
  • Flow Setting Range: 5.01-10.0 GPM
  • Adjustable Range: N/A
  • Set Point Accuracy: ±10%
  • Set Point Differential: 15%
  • Switch Type: SPDT (20 VA)
  • Port Size: 1-1/4" NPT Female
  • Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
  • Recommended Filtration: 150 micron
  • Approvals: UL Recognized, UL Explosion Proof, CE, CSA, FM
  • Weight: 3.875

    • Specifications

    Measurement Maximum 10.0
    Process Connection Type NPT-Female
    Measurement Minimum 0
