Gems FS-200 Series Flow Switch 2.0 GPM Flow Setting, 1" NPT Female, Bronze, Straight-Through

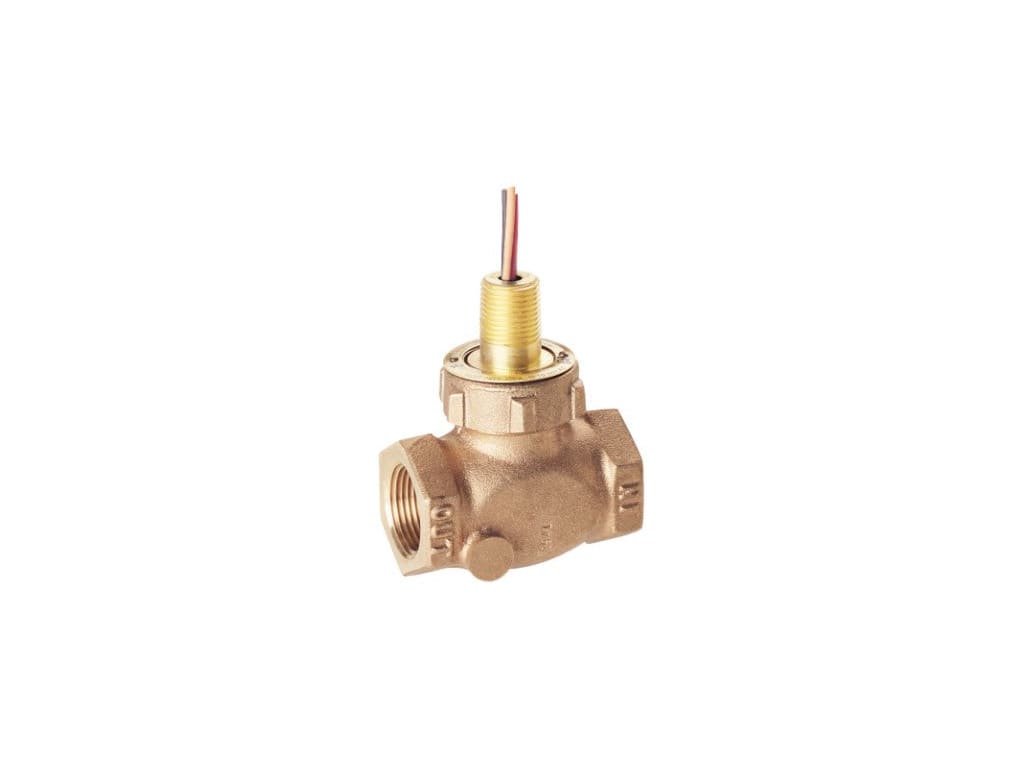

Representative photo. Please check item description for details.

Gems FS-200 Series Flow Switch 2.0 GPM Flow Setting, 1" NPT Female, Bronze, Straight-Through

https://www.branom.com/web/image/product.template/541689/image_1920?unique=c26756c
(0 review)

Primary Material of Construction	Alloy
Sensor Type	Shuttle Type
Adjustable Range	N/A
Flow Setting (GPM)	2.00
Body Material	Bronze
Port Size	1" NPT Female
Switch Type	SPDT (20VA)
Set Point Accuracy	±10%
Maximum Pressure (PSI)	300 - 500
Minimum Temperature (°F)	-20
Maximum Temperature	300
Electrical Termination	18 AWG, 24"-26" long Polymeric Leads
Set Point Differential	15%
Wetted Materials	Bronze, Teflon®,316 Stainless Steel, Viton, Ceramic
Approvals	UL Recognized, UL Explosion Proof, CE, CSA, FM
Recommended Filtration	150 micron
