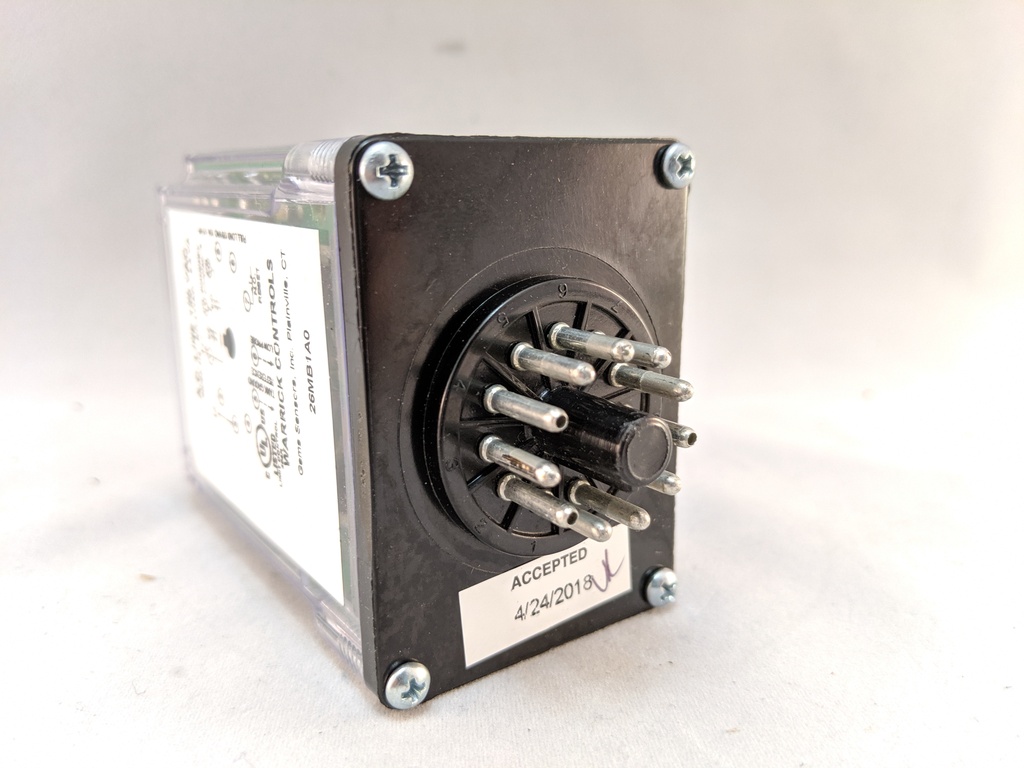

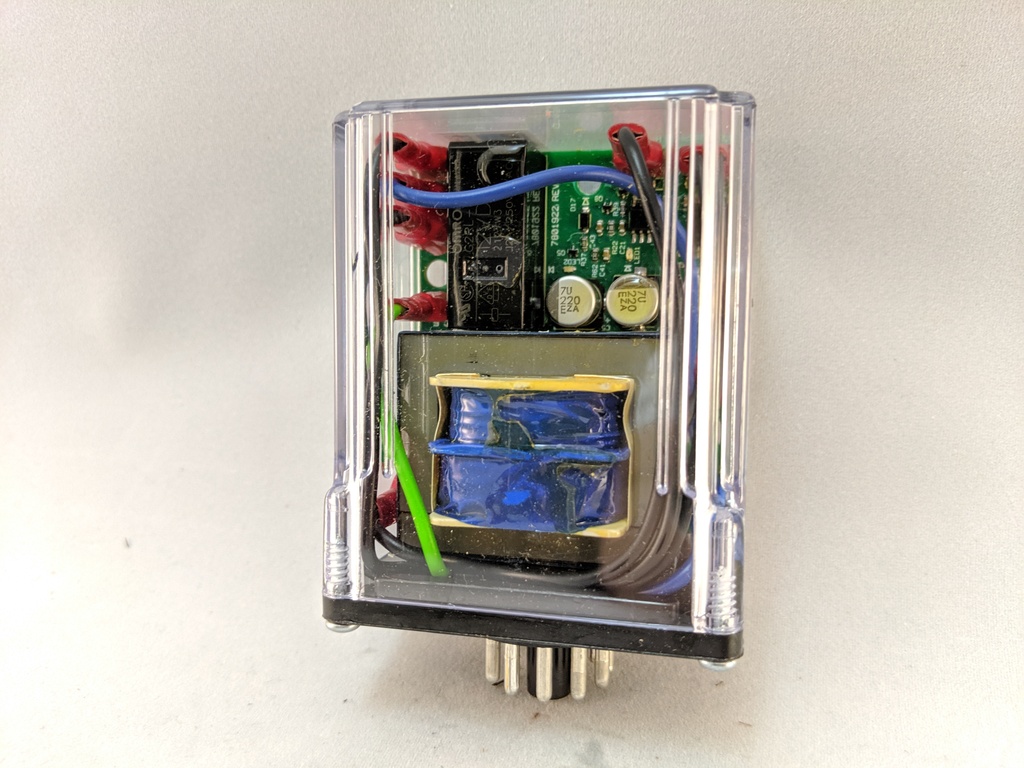

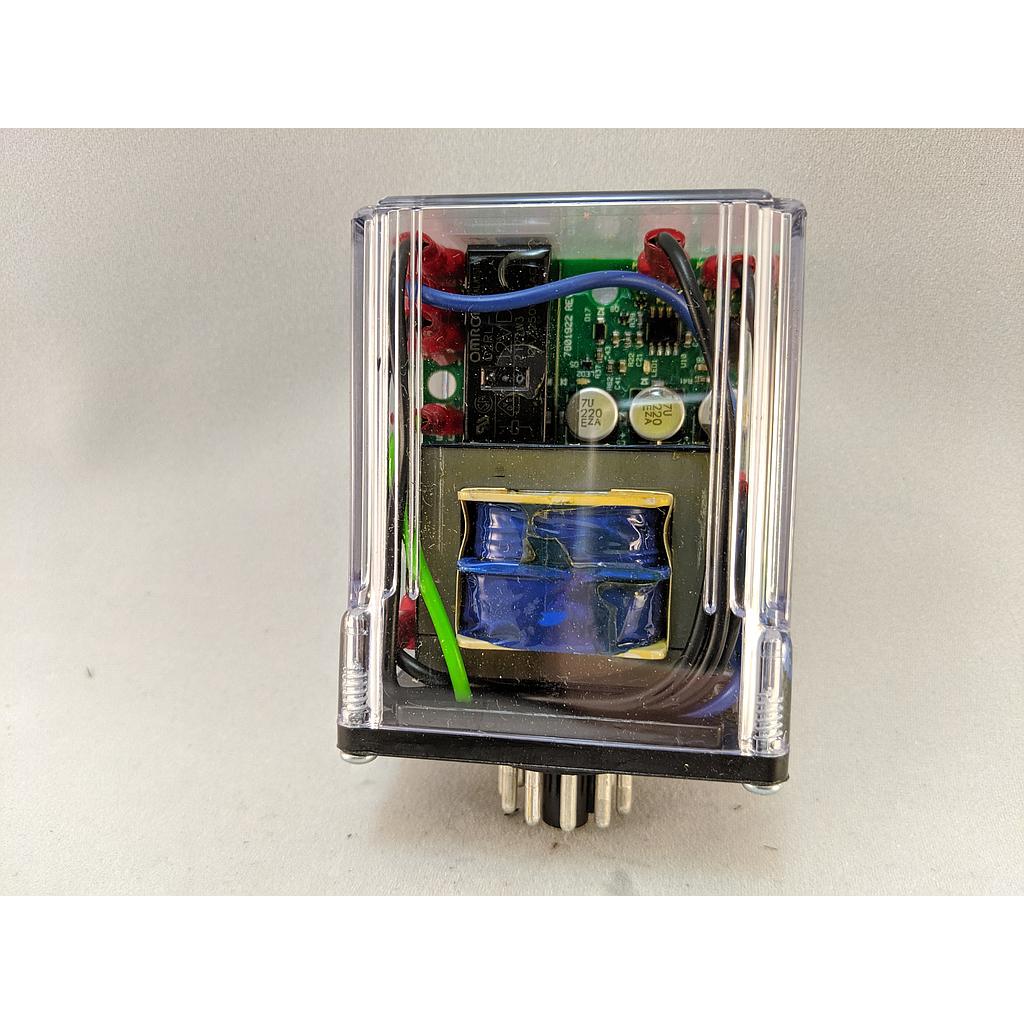

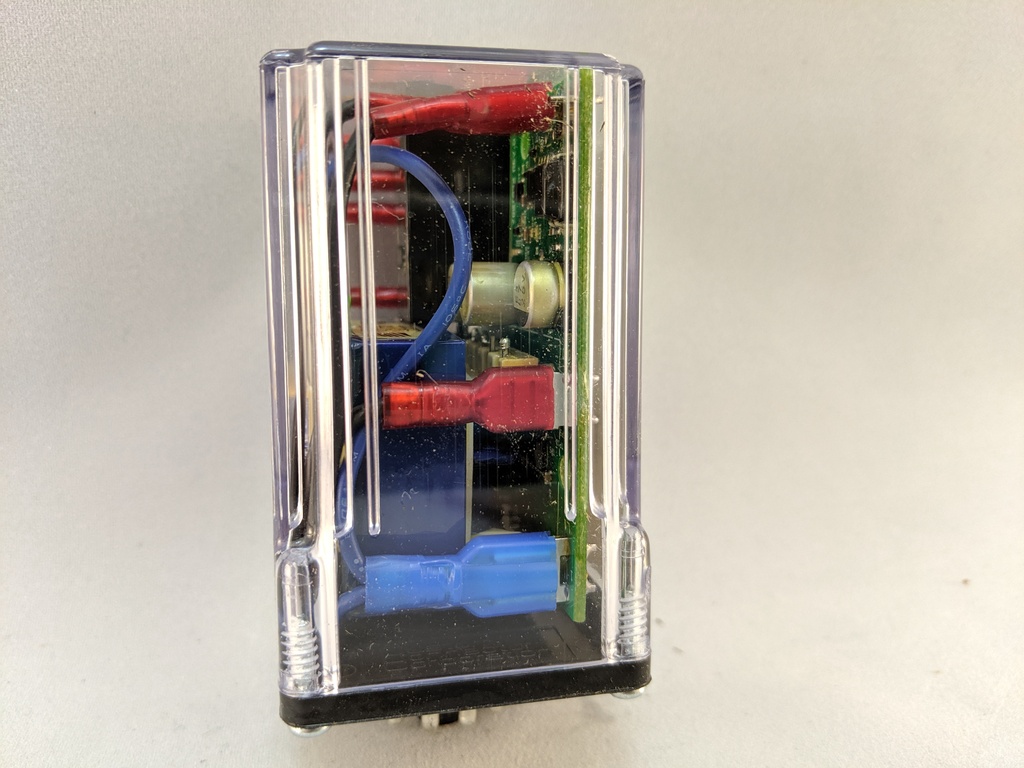

Low-Water Cutoff Level Control, 10k Ohm Sensitivity, 120VAC, 11 Pin Octal Mount, No Enclosure
Series 26M Low-Water Cutoff Plug-In Module is designed for low-water cutoff protection and meets CSD1 requirements for boiler low-water cutoff. Series 26M features powered contacts. If non-powered contacts are required, please contact factory and request
information on Series 26NM. Options include: Dirty Electrode Detection, Manual Reset Button (If level drops, control is deactivated until liquid level returns to normal and pushbutton is depressed), Power Outage Feature (ignores nuisance outages and
resets when power is restored), Test and time delays are available.
Sku: 26MB1A0
Model: 26M
Sensor Type: Low Water Cutoff Controls
Mode Of Operation: Direct
Sensitivity: 10 K ohms
Control Style: Plug-In Module
Socket Style: 11 Pin Octal
Standoff Style: N/A
Enclosure: N/A
Contact Design: 1 Normally Open & 1 Normally Closed (powered)
Contact Rating: 10 Amp Resistive 1/3 horse power
Supply Voltage: 120 VAC
Secondary Voltage: 12 VAC
Terminal Style: Screw Connector
Minimum Temperature: -40°F
Maximum Temperature: 150°F
Protection: Non-Intrinsically Safe
Approvals: UL 353 for use in Boilers
Weight: 1.1
