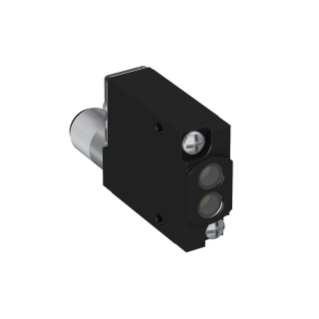

MINI-BEAM: Divergent Diffuse (SM312WQD)

https://www.branom.com/web/image/product.template/18012/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Divergent Diffuse
  • Range: 130 mm
  • Input: 10-30 V dc
  • Output: Bipolar: 1 NPN
  • 1 PNP
  • Euro M12 4-pin Integral QD
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Case Material: Thermoplastic
  • Power Supply: 10-30 VDC
  • Delay at Power-Up: 100 ms
  • Output Communication Protocol: PNP, NPN
  • Input Voltage: 10-30 VDC
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular
  • Max Sensing Distance: 130 mm
  • Sensing Mode (Detailed): Divergent
  • Sensing Mode (General): Proximity
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Hazardous Area: No
  • DeviceNet: No
  • Feature: IO Link: No
  • Feature: Quick Disconnect: Yes
  • Feature: Audible: No
  • Quick Disconnect Type: M12
  • Feature: Chemical Resistant: No
  • Feature: Water Detection: No
  • Number of Pins: 4
  • Output Response Time: 1 ms
  • Operation: Light/Dark Operate
  • Adjustments: Potentiometer
  • Feature: Timing (Hold/Delay): No
  • Feature: Encapsulated: Yes
  • Input/Output: Discrete
  • Feature: Remote Teach: No
  • Feature: Intrinsically Safe: No
  • Connection Type: Integral QD
  • Sensing Mode: Divergent
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12
  • Indicator Type: LED

$ 159.00 159.0 USD $ 159.00

$ 159.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Product Datasheets

    Datasheet 1
