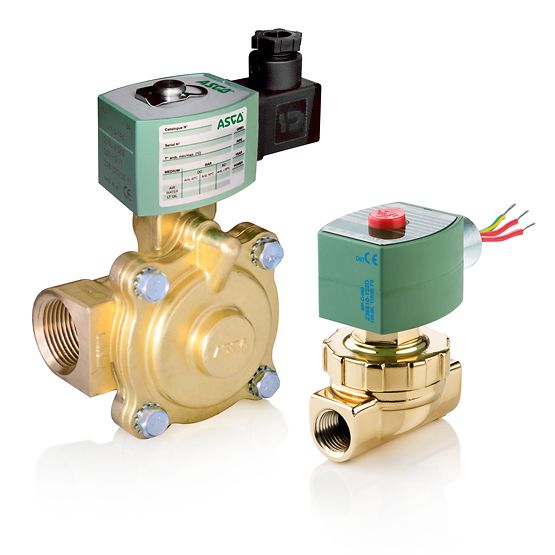

Representative photo. Please check item description for details.
267 Series Brass NC 2-Way Hot Water/Steam Valve
The ASCO 267-S Series solenoid valve is designed for high-temperature steam and hot water applications found in commercial laundry and kitchen equipment, heating systems, sterilizers, and autoclaves. Its features a unique, self-cleaning, straight-through design.
Features
- Direct acting straight-through, self-cleaning design
- Hot water service to 210 psi differential @ 210˚F;
- Steam service to 125 psi differential @ 353˚F
- Specify these valves for the high-temperature applications found
- in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
The ASCO 267-S Series solenoid valve is designed for high-temperature steam and hot water applications found in commercial laundry and kitchen equipment, heating systems, sterilizers, and autoclaves. Its features a unique, self-cleaning, straight-through design.
Features
- Direct acting straight-through, self-cleaning design
- Hot water service to 210 psi differential @ 210˚F;
- Steam service to 125 psi differential @ 353˚F
- Specify these valves for the high-temperature applications found
- in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
Specifications
| 8267 Series NC 2-Way Hot Water/Steam Valve | |
|---|---|
| Product Specifications | [G001] 3/8" Pipe | 1/4" Orifice | 1.5 Flow, [G003] 3/8" Pipe | 3/8" Orifice | 5.1 Flow, [G005] 1/2" Pipe | 1/4" Orifice | 1.4 Flow, [G007] 1/2" Pipe | 3/8" Orifice | 4.5 Flow, [G017] 3/4" Pipe | 3/8" Orifice | 5.4 Flow, [G019] 3/4" Pipe | 1/2" Orifice | 9.7 Flow |
| Solenoid Option | None, [EF] Explosionproof, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit |
| Coil Options | None, [SU] Class H - High Temperature - DIN Connection |
| Lead Length | Standard, 18" [D] |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Function | 2-Way Normally Closed |
| Valve: Body Material | Copper Alloy, Stainless Steel |
| Valve: Core Tube | Stainless Steel |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Springs | 302 SS |
| Valve: Shading Coil | Copper, Silver |
| Valve: Piston Material | Stainless Steel, PTFE |
| Valve: Enclosure Type | Redhat II - Watertight, Redhat II - Explosionproof & Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight |
| Valve: Media | Hot Water & Steam |
| Valve: Seats / Seat Insert | Glass-Filled PTFE |
| Valve: Brand | Asco |
| Valve: Seal Material | FKM, PTFE |
| Valve: Disc Material | Stainless Steel |
| Valve: Mounting Position | Any |
| Valve: Min Temperature °F | 32 |
| Valve: Max Temperature °F | 125 |
| Valve: Flow Factor (Cv) | 5.1, 1.4, 4.5 |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Pipe Size | 3/8 in, 1/2 in |
