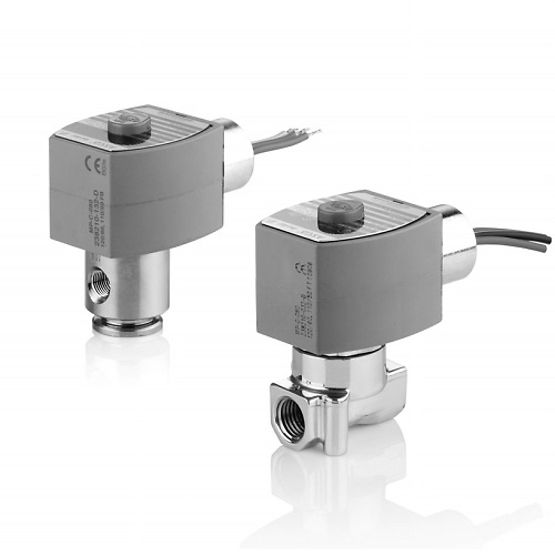

Representative photo. Please check item description for details.
264-S Series Cryogenic and Liquid CO2 Valve
The ASCO Series 264-S are direct- acting, pilot-operated cryogenic solenoid valves designed to control liquid CO2 fluids. The valves are ideal for cryogenic applications in analytical and diagnostic instruments.
Features
- Suitable for remount mounting or direct mounting to the refrigerated component by using the provided four-hole bracket
- Fluid temperature range from -75° F to 120° F
- Ambient temperature range: AC construction: -40° F to 125° F - DC construction: -40° F to 104° F
The ASCO Series 264-S are direct- acting, pilot-operated cryogenic solenoid valves designed to control liquid CO2 fluids. The valves are ideal for cryogenic applications in analytical and diagnostic instruments.
Features
- Suitable for remount mounting or direct mounting to the refrigerated component by using the provided four-hole bracket
- Fluid temperature range from -75° F to 120° F
- Ambient temperature range: AC construction: -40° F to 125° F - DC construction: -40° F to 104° F
Specifications
| 264-S Series Cryo/CO2 Valve | |
|---|---|
| Solenoid Option | None, [EF] Explosionproof, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HB] Class H - Intermediate Power, [KP] Class F - Intermediate Power - Screw Terminals, [SD] Class F - Intermediate Power - DIN Connection, [SP] Class F - Intermediate Power - Spade Terminals |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Product Specifications | [G010] 1/8" Pipe | 2" Orifice | .17 Flow |
| Valve Features | |
|---|---|
| Valve: Pipe Size | 1/8 in |
| Valve: Orifice | 3/64in |
| Valve: Actuation | Solenoid - Direct Acting, Solenoid - Pilot Operated |
| Valve: Body Material | Copper Alloy |
| Valve: Seal Material | PTFE, Clad Copper/UR |
| Valve: Disc Material | PTFE/UR |
| Valve: Core and Plugnut | Stainless Steel, 49 FM Alloy |
| Valve: Core Springs | 17-7 PH SS |
| Valve: Shading Coil | Copper |
| Valve: Seats / Seat Insert | Stainless Steel |
| Valve: Enclosure Type | Watertight, Explosionproof & Watertight |
| Valve: Media | Cryogenic |
| Valve: Function | 2-Way Normally Closed |
| Valve: Brand | Asco |
| Valve: Mounting Position | Any |
| Valve: Min Temperature °F | -320 |
| Valve: Max Temperature °F | 150 |
| Valve: Flow Factor (Cv) | 0.20 |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
