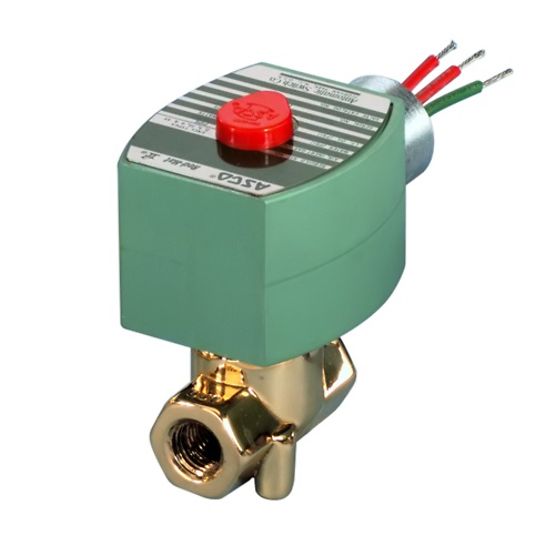

263 Series NC Hot Water & Steam Valve
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Hot water service to 210 psi differential @ 210°F; Steam sevice to 125 psi differential @ 353°F
- Specify these valves for the high-temperature applications found in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
- Direct acting miniature valves
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Hot water service to 210 psi differential @ 210°F; Steam sevice to 125 psi differential @ 353°F
- Specify these valves for the high-temperature applications found in laundries, molding, steam atomization, sterilizers, autoclaves, and many others
- Direct acting miniature valves
Specifications
| 8263 NC Hot Water/Steam Valve | |
|---|---|
| Product Specifications | [H053] Brass | 1/4" Pipe | 1/8" Orifice | 0.35 Cv Flow, [H059] Brass | 1/4" Pipe | 1/8" Orifice | 0.35 Cv Flow, [H300] Brass | 1/4" Pipe | 5/32" Orifice | 0.52 Cv Flow, [H301] Brass | 1/4" Pipe | 7/32" Orifice | 0.73 Cv Flow, [H303] Brass | 1/4" Pipe | 9/32" Orifice | 0.88 Cv Flow, [H304] Brass | 3/8" Pipe | 1/8" Orifice | 0.35 Cv Flow, [H305] Brass | 3/8" Pipe | 5/32" Orifice | 0.52 Cv Flow, [H306] Brass | 3/8" Pipe | 7/32" Orifice | 0.85 Cv Flow, [H308] Brass | 3/8" Pipe | 9/32" Orifice | 1 Cv Flow, [H318] Stainless Steel | 3/8" Pipe | 1/8" Orifice | 0.35 Cv Flow, [H319] Stainless Steel | 3/8" Pipe | 5/32" Orifice | 0.52 Cv Flow, [H320] Stainless Steel | 3/8" Pipe | 7/32" Orifice | 0.85 Cv Flow, [H321] Stainless Steel | 3/8" Pipe | 9/32" Orifice | 1 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [EF] Explosionproof (H303, H305, H035), [GP] Panel Mount Type 1 General Purpose Solenoid, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H300, H308), [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit (H303, H305), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H300, H308), [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit (H303, H305), [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [KB] Class H - Intermediate Power - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SS] Class H - Intermediate Power - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals (H053, H059), [SU] Class H - High Temperature - DIN Connection, [SU] Class H - High Temperature - DIN Connection (H305), [SV] Class H - Intermediate Power - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [E] EPDM (Ethylene Propylene) |
| Voltage | AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC24/60, AC240/60, AC240/60,220/50, AC480/60, AC480/60,440/50 |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Pipe Size | 1/4 in, 3/8 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | EPDM, PTFE |
| Valve: Enclosure Type | Redhat II - Explosionproof & Watertight, Redhat II - Watertight, Redhat - Type I, Redhat - Explosionproof & Raintight |
| Valve: Flow Factor (Cv) | 0.35, 0.52, 0.88, 1.0 |
| Valve: Media | Hot Water & Steam |
| Valve: Pressure (psi) | > 20 to 150 psi (1.38 to 10.34 bar) |
| Valve: Max Temperature °F | 131 |
| Valve: Mounting Position | Any |
| Valve: Orifice | 1/8in, 5/32in, 7/32in, 9/32in |
| Valve: Seats / Seat Insert | Stainless Steel |
| Valve: Seal Material | EPDM, PTFE |
| Valve: Shading Coil | Copper, Silver |
| Valve: Springs | Stainless Steel |
| Valve: Function | 2-Way Normally Closed |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | 32 |
