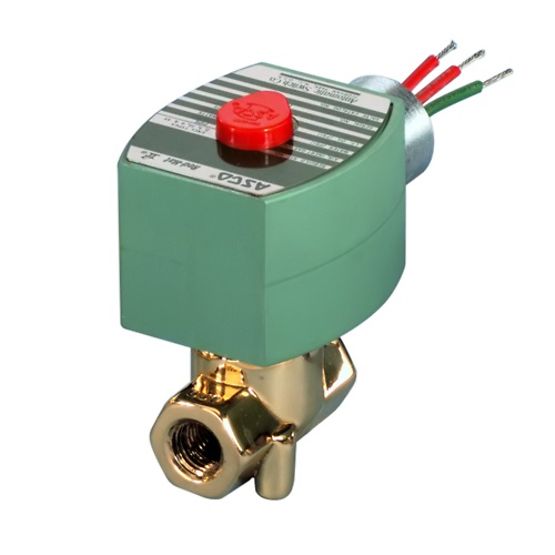

262 Series Gas Shutoff Valve
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- 2-way normally closed operation
- For gas pilot control of commercial and industrial gas burners
- Direct lift with resilient soft seating for tight shutoff
- Brass body construction
- Mountable in any position
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- 2-way normally closed operation
- For gas pilot control of commercial and industrial gas burners
- Direct lift with resilient soft seating for tight shutoff
- Brass body construction
- Mountable in any position
Specifications
| 8262 Gas Shutoff Valve | |
|---|---|
| Product Specifications | [H077] 1/8" Pipe | 1/8" Orifice | 0.35 Cv Flow, [H078] 1/4" Pipe | 9/32" Orifice | 1 Cv Flow |
| Solenoid Option | None, [EF] Explosionproof, [GP] Panel Mount Type 1 General Purpose Solenoid, [J] Junction Box, [JB] Factory Assembled Junction Box, [JBEF] Factory Assembled Junction Box & Explosionproof, 1/2" Conduit, [JCEF] Factory Assembled Junction Box & Explosionproof, 3/4" Conduit, [OF] Open Frame Spade and Screw Terminal Solenoids |
| Coil Options | None, [HT] Class H - High Temperature, [KF] Class F - High Temperature - Screw Terminals, [KH] Class H - High Temperature - Screw Terminals, [SC] Class F - High Temperature - DIN Connection, [SF] Class F - High Temperature - Spade Terminals, [ST] Class H - High Temperature - Spade Terminals, [SU] Class H - High Temperature - DIN Connection |
| Optional Lead Type | Standard, [L] Continuous Leads |
| Lead Length | Standard, 18" [D], 72" [K] |
| Optional Seat/Disc/Etc. Material | None, [Q] Long-Life Construction |
| Optional Mounting Bracket | [MB] Mounting Bracket, Without |
| Voltage | AC24/60, AC110/50, AC120/60, AC120/60,110/50, AC220/50, AC240/60, AC240/60,220/50, DC6/DC, DC12/DC, DC24/DC, DC120/DC, DC240/DC |
| Valve Features | |
|---|---|
| Valve: Brand | Asco |
| Valve: Core Guide | POM |
| Valve: Pipe Size | 1/8 in, 1/4 in |
| Valve: Actuation | Solenoid - Direct Acting |
| Valve: Body Material | Copper Alloy |
| Valve: Core and Plugnut | Stainless Steel |
| Valve: Disc Material | LT NBR |
| Valve: Enclosure Type | Watertight, Redhat II - Explosionproof & Watertight, Redhat - Explosionproof & Raintight |
| Valve: Flow Factor (Cv) | 0.35, 1.0 |
| Valve: Media | Fuel Gas |
| Valve: Pressure (psi) | > 150 to 300 psi (10.35 to 20.68 bar) |
| Valve: Max Temperature °F | 140 |
| Valve: Mounting Position | Any |
| Valve: Gas Capacity (Btu/hr) | 18,700, 53,500 |
| Valve: Orifice | 1/8in, 9/32in |
| Valve: Seal Material | LT NBR |
| Valve: Shading Coil | Copper |
| Valve: Springs | Inconel 600 |
| Valve: Function | 2-Way Normally Closed |
| Valve: Opening Time | <1s |
| Valve: Closing Time | <1s |
| Valve: Core Tube | Stainless Steel |
| Valve: Min Temperature °F | -40 |
| Valve: Rider Rings | PTFE |
