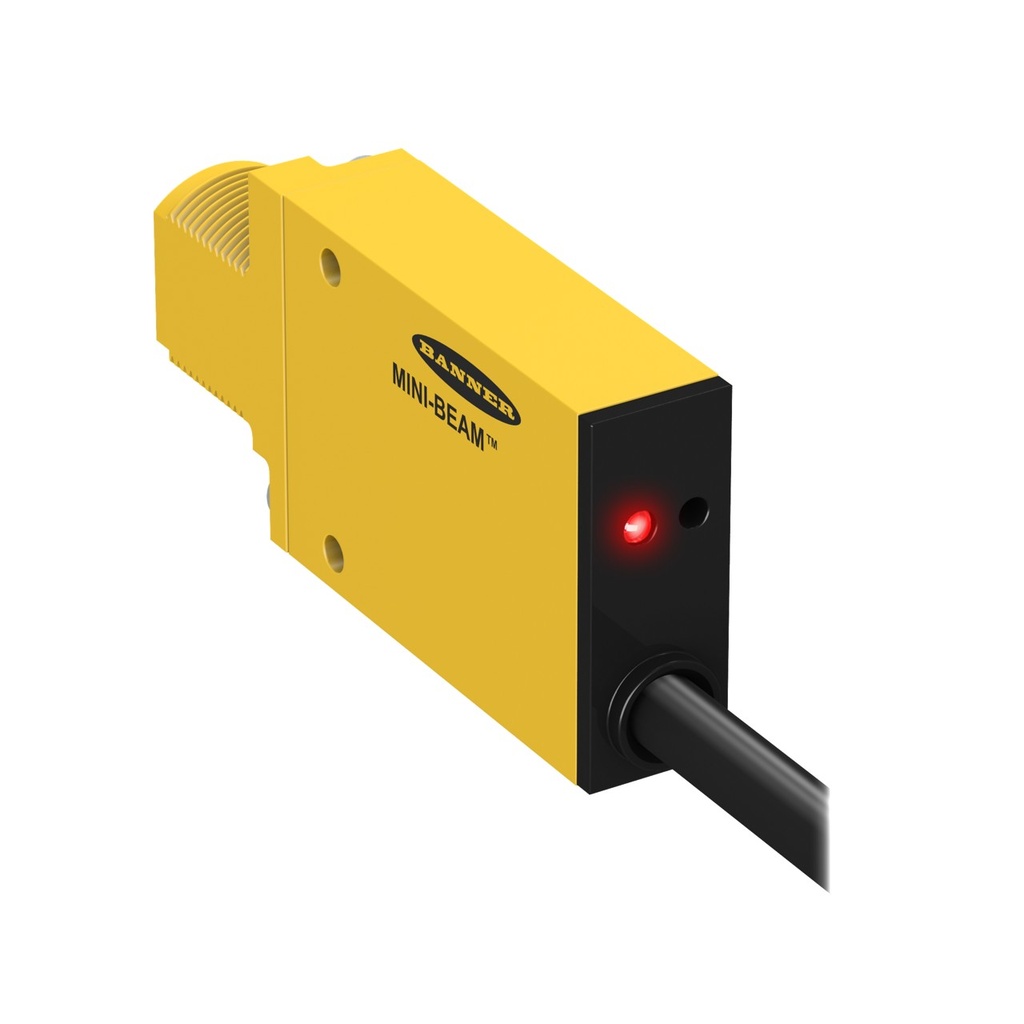

MINI-BEAM: Emitter (SMA31EL)

https://www.branom.com/web/image/product.template/11458/image_1920?unique=c26756c
(0 review)

Features:

  • MINI-BEAM: Emitter
  • Range: 30 m
  • Input: 24-240V ac
  • Output: Not applicable
  • No outputs
  • 2 m (6.5 ft) cable
  • Power: AC
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 70 °C
  • Lens Material: Acrylic
  • Power Supply: 24-240 VAC
  • Ingress Protection: IP67
  • Repeatability (µs): 300
  • Sensing Beam: Infrared LED
  • Housing Style: Rectangular w/M18 Mount
  • Max Sensing Distance: 30000 mm
  • Sensing Mode (Detailed): Emitter
  • Sensing Mode (General): Opposed
  • Max Relative Humidity: 90% @ 50 °C
  • Housing Material_: Thermoplastic
  • Feature: Audible: No
  • Opposed Mode Emitter/Receiver: Emitter
  • Number of Pins: 2
  • Adjustments: Potentiometer
  • Feature: Encapsulated: Yes
  • Barrel Diameter: 18 mm
  • Connection Type: Cable
  • NEMA / UL: NEMA 1/2/3/3S/4/4X/6/12/13
  • Cord/Cable Length: 2 m
  • Indicator Type: LED

$ 119.00 119.0 USD $ 119.00

$ 119.00

Not Available For Sale

    This combination does not exist.
